Description

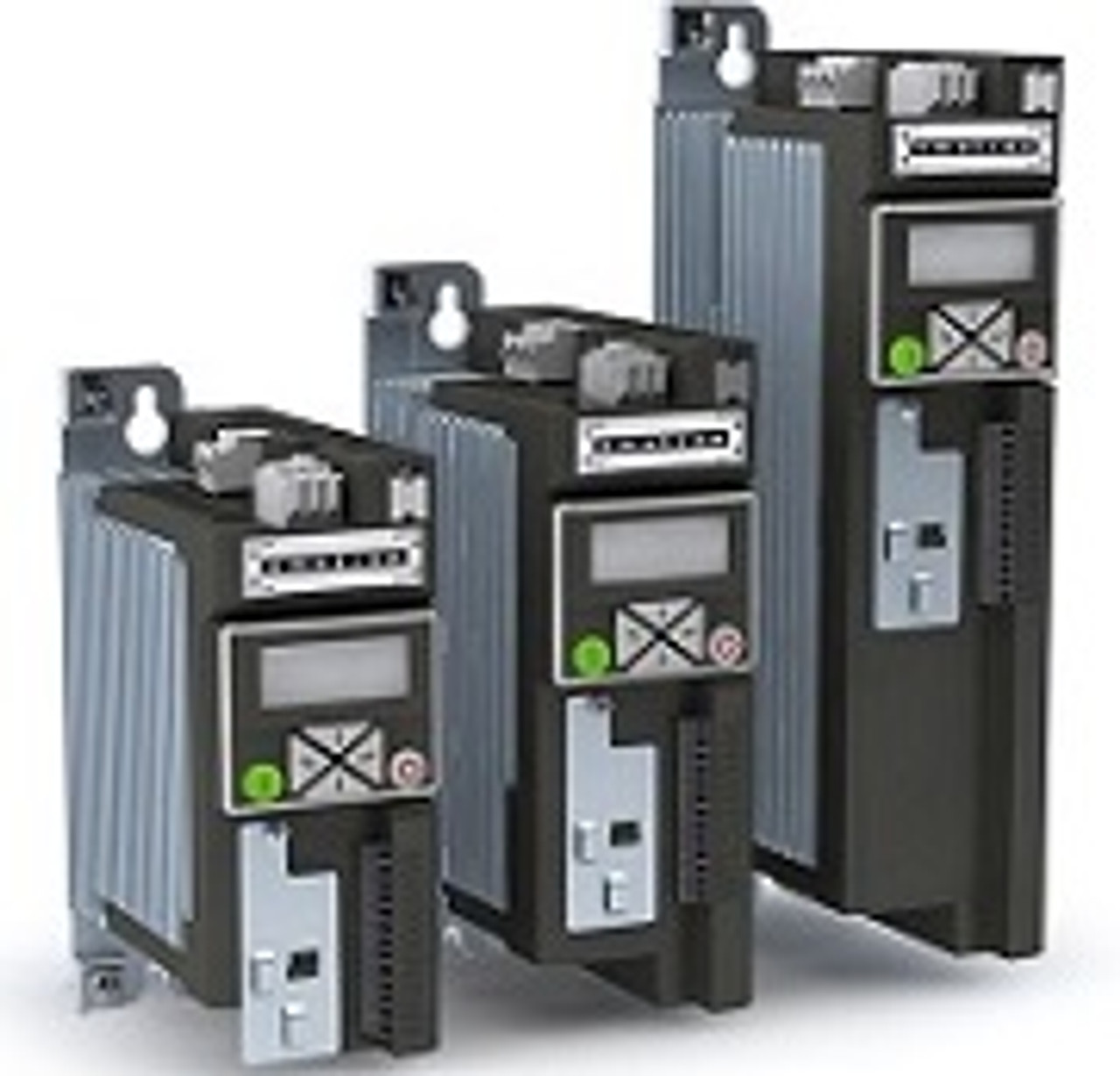

Although small in size, our new Emotron VS10 and VS30 drives are equipped with several advanced features. The compact format offers flexible installation and the user-friendly set-up means your system will be operational in no time. Emotron VS10 and VS30 offer reliable and cost-efficient operation of your pumps, fans and compressors as well as constant torque applications. The complete series covers motors in the power range of 0.25 - 7.5 kW. The compact format offers flexible installation and the user-friendly set-up will have your system up-and-running in no time.
| Manufacturer: | Emotron |
| Series: | VS10/VS30 |
| Model: | VS10-23-2P4-20 |
| Application: | pumps / fans |
| Capacity, kW: | 0,37 |
| Current, А: | 2.4 |
| Main power supply, V: | 230 |
| Phase: | 1 |
| Output frequency, Hz: | 0-599 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Analog input: | 3 |
| Digital input: | 5 |
| Analog output: | 2 |
| Digital output: | 1 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | - |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10......+55 |
| Dimensions (W x H x D), mm: | 60x155x130 |
