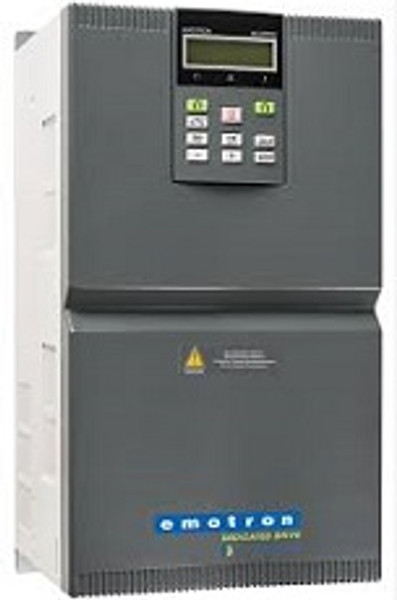

Emotron VFX 2.0 AC drive optimises the operation of your cranes, crushers, mills and mixers. Your process is protected from damage and downtime and you benefit from reduced installation, energy and maintenance costs. Emotron VFX AC drive is ideal for dynamic applications. Direct torque control, accurate speed control and efficient vector braking offer reliable control of, for example, cranes, crushers and centrifuges. The series covers motor powers of up to 3,000 kW. Available in both IP54 certified enclosure as well as IP20/21. Operation parameters can be set in your own process units – m/sec, tons/hour, cycles/min etc. – making monitoring easier and more reliable. The removable control panel has a copy function for transferring settings to other Emotron VFX units. You can switch between local and remote control by the push of a button on the control panel. The built- in programmable logical functions, comparators and timers mean that, in many cases, external PLC or relays can be avoided.
| Manufacturer: | Emotron |
| Series: | VFX 2.0 |
| Model: | VFX48-025-20 |
| Application: | cranes / general purpose |
| Capacity, kW: | 5,5 |
| Current, А: | 25 |
| Main power supply, V: | 230 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 120 |
| EMC filter: | built-in |
| Braking unit: | optional |
| Analog input: | 4 |
| Digital input: | 8 |
| Analog output: | 2 |
| Digital output: | 2 |
| Relay output: | 3 |
| RS485 (Modbus RTU): | + |
| V/f control mode: | + |
| Vector control with feedback: | - |
| Sensorless vector control: | - |
| Operation temperature, °С: | 0......+40 |
| Storage temperature, °С: | -20......+60 |
| Dimensions (W x H x D), mm: | 176x446x267 |
| Weight, kg: | 17 |
