Description

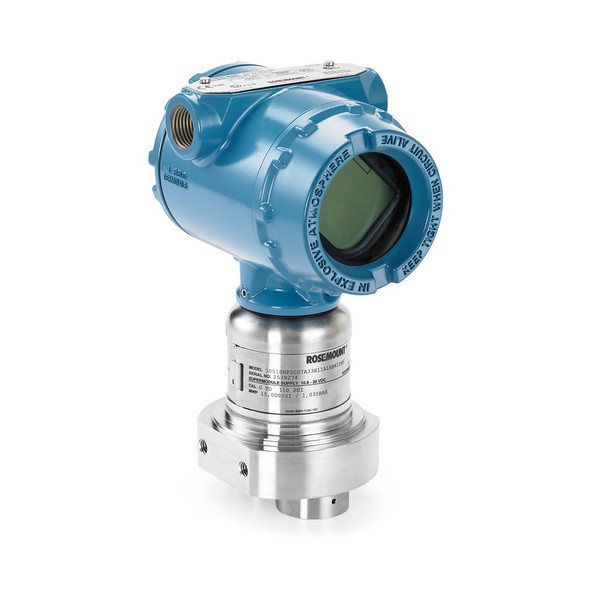

Engineered to withstand static pressures of up to 15000 psi (1034 bar), the Rosemount 3051S High Static DP Transmitter incorporates the compact, SuperModule™ design for harsh production conditions. A no-equal solution, this transmitter provides differential pressure and temperature measurements and utilizes the Rosemount Coplanar™ technology for reduced installation weight. This transmitter is designed with a coned and threaded direct connection to withstand high static pressure conditions. Warranty: Up to 15-year limited warranty Rangedown: Up to 150:1 Communication Protocol: 4-20 mA HART,WirelessHART®, FOUNDATION™ Fieldbus Measurement Range: Up to 150 psi (10.34 bar) Differential with maximum working pressure up to 15,000 psi (1034 bar) Process Wetted Material: Alloy C-276 Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
