Description

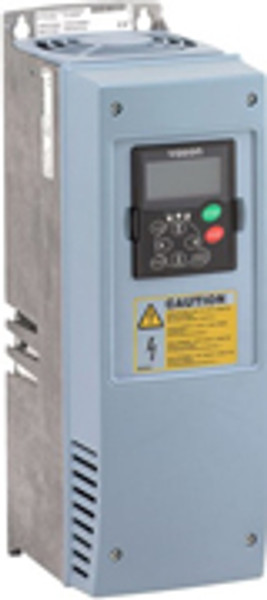

The Vacon NXL is a powerful standard AC drive for industrial and residential purposes in the power range from 0.75 to 30 kW. It comes with space-saving bookshelf design, high protection classes, versatile control and programming capabilities which offer an optimal solution for all operating environments. Installation, connection and commissioning procedures are extremely quick and convenient with instructions attached to the unit.
- Trouble-free choice for all open loop applications
- Standard unit fulfills EMC requirements for industrial, public and residential environments
- IP21/Type 1 and IP54/Type 12 protection classes
- Installation instructions integrated into each unit
- High starting torque and dynamics due to open-loop vector control
- High switching frequency (up to 16 kHz, 6 kHz standard)
- Standard control I/O with option to be extended. RS485 integrated as standard
- No additional cabinets required
- Everything integrated as standard (dust/water protection, RFI filter, AC choke, brake chopper)
- Easy to install, easy to use
- Large amount of control possibilities (via I/Os, field buses or display panel)
- Large amount of features (e.g. fully programmable I/O, auto-identification, PID controller, flying start)
Additional links:
| Manufacturer: | Vacon |
| Series: | NXL |
| Model: | NXL 0007 5C*H1 |
| Application: | general purpose |
| Capacity, kW: | 3 |
| Current, А: | 7.6 |
| Main power supply, V: | 380-500 |
| Phase: | 3 |
| Output frequency, Hz: | 0.....320 |
| Enclosure: | IP 21 or IP 54 |
| Overload capacity, % per 1 min.: | 110 |
| Acceleration time, sec: | 0-3000 |
| Deceleration time, sec: | 0-3000 |
| EMC filter: | + |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 4 |
| Analog output: | 1 |
| Digital output: | - |
| Relay output: | 1, or 2 programmable relay outputs |
| RS485 (Modbus RTU): | + |
| Starting torque: | up to 200% |
| PID: | PID - regulation |
| V/f control mode: | + |
| Vector control with feedback: | - |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10......+40 |
| Storage temperature, °С: | -40......+70 |
| Dimensions (W x H x D), mm: | 128х292х190 |
| Weight, kg: | 5 |
