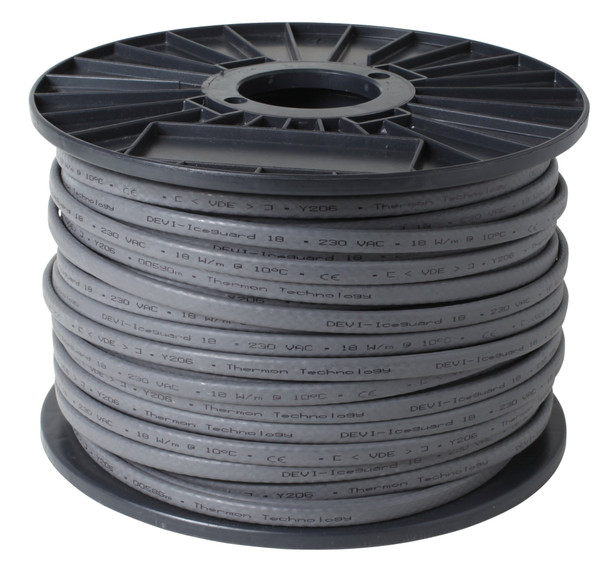

98300862 Danfoss DEVIiceguard™ (T)

Description

Product details

Gross weight	0.11 kg
Net weight	0.11 kg

EAN

5703466213506

Bending diameter [mm] [Min]	32 mm
Cable height [mm]	5.8 mm
Cable length [m]	750 m
Cable on drum	Yes
Cable output [W/m]	18 W/m
Cable screen	Tinned copper braid
Cable self-limiting definition point [W/°C]	18W@10°C
Cable type	Self-limiting
Cable width [mm]	11.8 mm
Certification company	VDE
Cold lead	No
Conductor insulation	Self-limiting matrix
Cut to length	No
Description	DEVIiceguard 18 Black 750m drum Thermon
Filler material	TPE
Flame retardant	Yes

Heating principle	Self-limiting
Installation temperature [°C] [Min]	-50 °C
Lead free	Yes
Non operating temperature [°C] [Max]	85 °C
Operating temperature [°C] [Max]	65 °C
Outer sheath	TPE
Outer sheath colour	Black
Product group	Heating Cables
Product name	DEVIiceguard™ 18 (T)
Screen braided coverage [%] [Min]	80 %
Supply voltage range [V] AC	230 V
Supply voltage range [V] AC [Max]	240 V
Supply voltage range [V] AC [Min]	220 V
Type	DEVIiceguard™ (T)
UV Protected	Yes
Warranty [Year]	5

Bending diameter [mm] [Min]	32 mm
Cable height [mm]	5.8 mm
Cable length [m]	750 m
Cable on drum	Yes
Cable output [W/m]	18 W/m
Cable screen	Tinned copper braid
Cable self-limiting definition point [W/°C]	18W@10°C
Cable type	Self-limiting
Cable width [mm]	11.8 mm
Certification company	VDE
Cold lead	No
Conductor insulation	Self-limiting matrix
Cut to length	No
Description	DEVIiceguard 18 Black 750m drum Thermon
Filler material	TPE
Flame retardant	Yes
Heating principle	Self-limiting
Installation temperature [°C] [Min]	-50 °C
Lead free	Yes
Non operating temperature [°C] [Max]	85 °C
Operating temperature [°C] [Max]	65 °C
Outer sheath	TPE
Outer sheath colour	Black
Product group	Heating Cables
Product name	DEVIiceguard™ 18 (T)
Screen braided coverage [%] [Min]	80 %
Supply voltage range [V] AC	230 V
Supply voltage range [V] AC [Max]	240 V
Supply voltage range [V] AC [Min]	220 V
Type	DEVIiceguard™ (T)
UV Protected	Yes
Warranty [Year]	5

DEVIiceguard 18 Black 750m drum Thermon

Gross weight	0.11 kg
Net weight	0.11 kg

EAN

5703466213506

Bending diameter [mm] [Min]	32 mm
Cable height [mm]	5.8 mm
Cable length [m]	750 m
Cable on drum	Yes
Cable output [W/m]	18 W/m
Cable screen	Tinned copper braid
Cable self-limiting definition point [W/°C]	18W@10°C
Cable type	Self-limiting
Cable width [mm]	11.8 mm
Certification company	VDE
Cold lead	No
Conductor insulation	Self-limiting matrix
Cut to length	No
Description	DEVIiceguard 18 Black 750m drum Thermon
Filler material	TPE
Flame retardant	Yes

Heating principle	Self-limiting
Installation temperature [°C] [Min]	-50 °C
Lead free	Yes
Non operating temperature [°C] [Max]	85 °C
Operating temperature [°C] [Max]	65 °C
Outer sheath	TPE
Outer sheath colour	Black
Product group	Heating Cables
Product name	DEVIiceguard™ 18 (T)
Screen braided coverage [%] [Min]	80 %
Supply voltage range [V] AC	230 V
Supply voltage range [V] AC [Max]	240 V
Supply voltage range [V] AC [Min]	220 V
Type	DEVIiceguard™ (T)
UV Protected	Yes
Warranty [Year]	5

Bending diameter [mm] [Min]	32 mm
Cable height [mm]	5.8 mm
Cable length [m]	750 m
Cable on drum	Yes
Cable output [W/m]	18 W/m
Cable screen	Tinned copper braid
Cable self-limiting definition point [W/°C]	18W@10°C
Cable type	Self-limiting
Cable width [mm]	11.8 mm
Certification company	VDE
Cold lead	No
Conductor insulation	Self-limiting matrix
Cut to length	No
Description	DEVIiceguard 18 Black 750m drum Thermon
Filler material	TPE
Flame retardant	Yes
Heating principle	Self-limiting
Installation temperature [°C] [Min]	-50 °C
Lead free	Yes
Non operating temperature [°C] [Max]	85 °C
Operating temperature [°C] [Max]	65 °C
Outer sheath	TPE
Outer sheath colour	Black
Product group	Heating Cables
Product name	DEVIiceguard™ 18 (T)
Screen braided coverage [%] [Min]	80 %
Supply voltage range [V] AC	230 V
Supply voltage range [V] AC [Max]	240 V
Supply voltage range [V] AC [Min]	220 V
Type	DEVIiceguard™ (T)
UV Protected	Yes
Warranty [Year]	5
