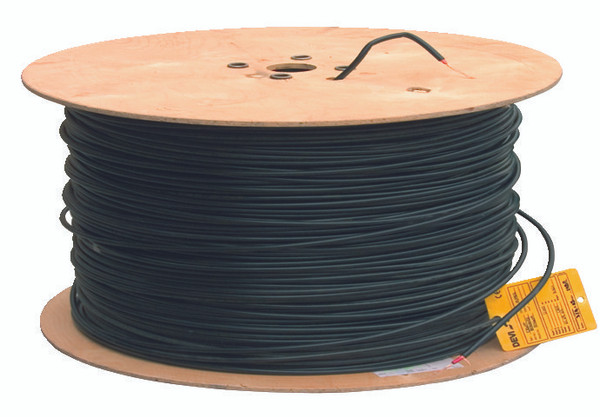

84805400 Danfoss DEVIsnow™ drum

Description

Product details

Gross weight	0.04 kg
Net weight	0.04 kg

EAN

5703466146248

Heating principle	Serial resistive
Installation temperature [°C] [Min]	-5 °C
Non operating temperature [°C] [Max]	90 °C
Operating temperature [°C] [Max]	60 °C
Operating temperature [°C] [Min]	60 °C
Outer sheath	PVC
Outer sheath colour	Black
Product group	Heating Cables
Pulling strength [N]	300 N
Supply voltage range [V] AC [Max]	500 V
Supply voltage range [V] AC [Min]	230 V
Type	DEVIsnow™ drum
UV Protected	Yes
Warranty [Year]	20

Bending diameter [mm] [Min]	50 mm
Cable diameter [mm]	7 mm
Cable on drum	Yes
Cable output [W/m]	30 W/m
Cable resistance [Ohm]	9.356 Ohm
Cable screen	Alufoil 100%
Cable type	Twin conductor
Certification company	NEMKO
Cold lead	No
Conductor insulation	FEP
Cut to length	Yes
Deformation strength [N]	1500 N
Description	DEVIsnow 9,356 Ohm/m
Element IP Class	IPX7
Heating principle	Serial resistive
Installation temperature [°C] [Min]	-5 °C
Non operating temperature [°C] [Max]	90 °C
Operating temperature [°C] [Max]	60 °C
Operating temperature [°C] [Min]	60 °C
Outer sheath	PVC
Outer sheath colour	Black
Product group	Heating Cables
Pulling strength [N]	300 N
Supply voltage range [V] AC [Max]	500 V
Supply voltage range [V] AC [Min]	230 V
Type	DEVIsnow™ drum
UV Protected	Yes
Warranty [Year]	20
