Description

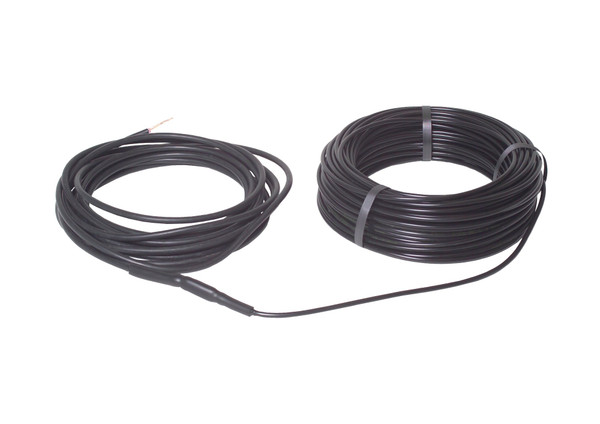

DEVIasphalt 30T 35m 1090W 400V
Product details
| Gross weight | 4.09 kg |
| Net weight | 4.05 kg |
| EAN | 5703466192870 |
| Gross weight | 4.09 kg |
| Net weight | 4.05 kg |
| EAN | 5703466192870 |
| Bending diameter [mm] [Min] | 42 mm |
| Bi-conductor screen [mm²] | Cu 1.0 |
| Cable diameter [mm] | 7 mm |
| Cable length [m] | 35 m |
| Cable on drum | No |
| Cable output [W/m] | 30 W/m |
| Cable resistance [Ohm] | 147 Ohm |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 10 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 2.5 mm2 |
| Cold lead type | DTWK |
| Conductor insulation | FEP |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIasphalt 30T 35m 1090W 400V |
| Element IP Class | IPX7 |
| Filler material | PEX |
| Flame retardant | Yes |
| Heating output [W] | 1090 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 60 °C |
| Outer sheath | XPLO |
| Outer sheath colour | Black |
| Package depth [mm] | 386 mm |
| Package height [mm] | 92 mm |
| Package width [mm] | 386 mm |
| Product group | Heating Cables |
| Product name | DEVIasphalt™ 30T |
| Pulling strength [N] | 300 N |
| Short period temperature [°C] [Max] | 240 °C |
| Supply voltage range [V] AC | 400 V |
| Type | DEVIasphalt™ 30T |
| UV Protected | Yes |
| Warranty [Year] | 20 |
