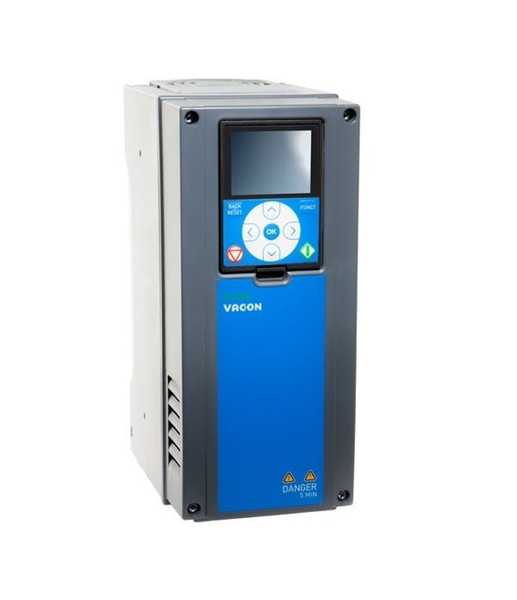

VACON 100 FLOW Range
VACON 100 FLOW is an AC drive dedicated to improving flow control in Building Automation and Water & Wastewater applications. It combines core functionality of VACON 100 with features that are specifically designed for flow control applications, such as Multipump solutions and application selection menus.
Features
Power range of 0.55 kW/0.75 HP to 160 kW/250 HP
Available in two voltage versions 208 - 240 V and 380 - 500 V
IP21/UL Type 1 or IP54/UL Type 12 certified enclosures
Dedicated flow control functionality
Multipump single drive, Multimaster and Multifollower pump control solutions as standard
Graphical keypad with wizards and application menus
Electrolytic-free DC link capacitors for long lifetime and high reliability
Integrated Safe torque off (STO) option, Safe Stop and ATEX thermistor protection
BACnet IP, Modbus TCP, Profinet IO (optional) and Ethernet IP (optional) via on-board Ethernet
Modbus RTU, Metasys N2 and BACnet MSTP via RS485 available as standard
Benefits
Dedicated functionality for pump, fan and compressor applications makes system integration easy and efficient
Electrolytic-free DC link capacitors for long lifetime and minimized lifecycle cost
Graphical keypad with wizard guides the user through commissioning and drive startup
Built-in Ethernet and RS485 communication as standard offers efficient integration into automation systems
Product Specifications
Part Number: VACON 0100-3L-0105-5-FLOW
Series: VACON 100 FLOW
Manufacturer: VACON
Rated Power (KW/HP): 55
Current (Amps) : 105
Enclosure Rating: IP21
Voltage: 380 - 500
Phase Output: Three
Dimensions
Height (mm):290 mm
Width (mm):966 mm
Depth (mm):343 mm
Weight (kg):66 kg
