Description

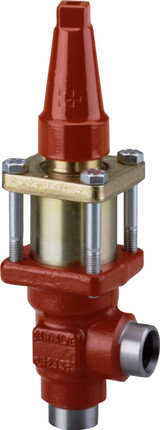

Red CAP+GASKET SVA 15-20, Used for product: ICLX 100;ICLX 50;ICLX 65;ICLX 80;OFV 20;OFV 25;REG 15;REG 20;SCA 15;SCA 20;SCH 15;SCH 20;SVA 15;SVA 20
Product details
| Gross weight | 2.25 kg |
| Net weight | 2.15 kg |
| EAN | 5702428189828 |
| Gross weight | 2.25 kg |
| Net weight | 2.15 kg |
| EAN | 5702428189828 |
| Category | Art. 3, par. 3 |
| Colour Paint | Gray |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] [Max] | 0.6 gal/min |
| Cv value [gal/min] [Min] | 0 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Fluid Group | I |
| Kv value [m³/h] [Max] | 0.52 m3/h |
| Kv value [m³/h] [Min] | 0 m3/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Single pack |
| Pressure range [bar] Pe [Max] | 8 bar |
| Pressure range [bar] Pe [Min] | 2 bar |
| Product description | Overflow Valve |
| Product group | Press. and temp. regul. valves |
| Product name | Pressure regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | OFV 20 |
| Category | Art. 3, par. 3 |
| Colour Paint | Gray |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] [Max] | 0.6 gal/min |
| Cv value [gal/min] [Min] | 0 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Fluid Group | I |
| Kv value [m³/h] [Max] | 0.52 m3/h |
| Kv value [m³/h] [Min] | 0 m3/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Single pack |
| Pressure range [bar] Pe [Max] | 8 bar |
| Pressure range [bar] Pe [Min] | 2 bar |
| Product description | Overflow Valve |
| Product group | Press. and temp. regul. valves |
| Product name | Pressure regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | OFV 20 |
