Description

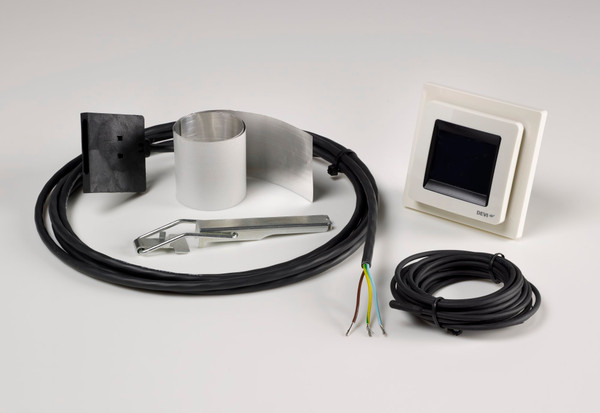

DEVIdry Pro Kit, Touch
Product details
| Gross weight | 0.81 kg |
| Net weight | 0.8 kg |
| EAN | 5703466194515 |
| Gross weight | 0.81 kg |
| Net weight | 0.8 kg |
| EAN | 5703466194515 |
| 2-pole switch | Yes |
| Ambient temperature [°C] [Max] | 30 °C |
| Ambient temperature [°C] [Min] | -10 °C |
| Approval standard | EN/IEC 60730-1 EN/IEC 60730-2-7 EN/IEC 60730-2-9 |
| Ball presure test temperature [°C] | 75 °C |
| Certification company | EAC Intertek Semko |
| Depth [mm] | 54 mm |
| Description | DEVIdry Pro Kit, Touch |
| DIN mounting | No |
| Display (Yes/No) | Yes |
| Frost protection [°C] | 5 °C |
| Height [mm] | 85 mm |
| Hysteresis (+/-) | 0.4 |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 280 mm |
| Package height [mm] | 80 mm |
| Package width [mm] | 230 mm |
| Pollution degree | 2 |
| Product group | Heating Mats |
| Product name | DEVIdry™ Pro Kit |
| Regulation type | Hysteresis |
| Resistive load max [A] | 15 |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | NTC |
| Set accessories | Assembly Tool For Devidry Devidry CD Circuit Device Devidry CD Output Cord Female connector DEVIreg™ 535 |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Temperature - floor [°C] [Max] | 45 °C |
| Temperature - floor [°C] [Min] | 5 °C |
| Temperature - room [°C] [Max] | 35 °C |
| Temperature - room [°C] [Min] | 5 °C |
| Temperature max. limiter [°C] [Max] | 60 °C |
| Temperature max. limiter [°C] [Min] | 20 °C |
| Temperature min. limiter [°C] [Max] | 35 °C |
| Temperature min. limiter [°C] [Min] | 10 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| Thermostat IP Class | 31 |
| Type | DEVIdry™ Kit |
| Warranty [Year] | 2 |
| 2-pole switch | Yes |
| Ambient temperature [°C] [Max] | 30 °C |
| Ambient temperature [°C] [Min] | -10 °C |
| Approval standard | EN/IEC 60730-1 EN/IEC 60730-2-7 EN/IEC 60730-2-9 |
| Ball presure test temperature [°C] | 75 °C |
| Certification company | EAC Intertek Semko |
| Depth [mm] | 54 mm |
| Description | DEVIdry Pro Kit, Touch |
| DIN mounting | No |
| Display (Yes/No) | Yes |
| Frost protection [°C] | 5 °C |
| Height [mm] | 85 mm |
| Hysteresis (+/-) | 0.4 |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 280 mm |
| Package height [mm] | 80 mm |
| Package width [mm] | 230 mm |
| Pollution degree | 2 |
| Product group | Heating Mats |
| Product name | DEVIdry™ Pro Kit |
| Regulation type | Hysteresis |
| Resistive load max [A] | 15 |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | NTC |
| Set accessories | Assembly Tool For Devidry Devidry CD Circuit Device Devidry CD Output Cord Female connector DEVIreg™ 535 |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Temperature - floor [°C] [Max] | 45 °C |
| Temperature - floor [°C] [Min] | 5 °C |
| Temperature - room [°C] [Max] | 35 °C |
| Temperature - room [°C] [Min] | 5 °C |
| Temperature max. limiter [°C] [Max] | 60 °C |
| Temperature max. limiter [°C] [Min] | 20 °C |
| Temperature min. limiter [°C] [Max] | 35 °C |
| Temperature min. limiter [°C] [Min] | 10 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| Thermostat IP Class | 31 |
| Type | DEVIdry™ Kit |
| Warranty [Year] | 2 |
