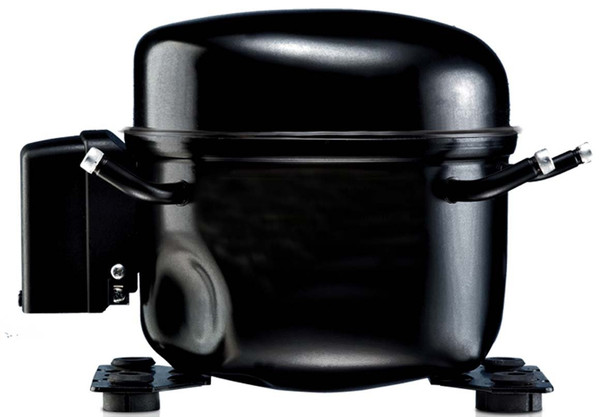

195B0268 Danfoss Reciprocating compressor, TL2.5G

Write a Review
SKU:
195B0268
Availability:
2 - 3 weeks

Product details Gross weight 7.2 kg Net weight 7.2 kg Gross weight 7.2 kg Net weight 7.2 kg   Applicati…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 7.2 kg
Net weight 7.2 kg
Gross weight 7.2 kg
Net weight 7.2 kg



Application energy level Universal
Applications HBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 15.5 Ohm
Base plate type EU small
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 4.5 A
Cut in current LST [A] 7.2 A
Description TL2.5G
Discharge connection angle [°] 28 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 5 mm
Discharge connection material Copper
Economizer No
Free gas volume [cm3] 1600 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 159 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 222 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 4.5 A
LRA HST [A] 4.5 A
LRA LST [A] 2.8 A
Main winding resistance for single-phase compressors [Ohm] 32.7 Ohm
Model number TL2.5G
Motor type CSIR
RSIR
No. of phases (compressor) 1
Nominal cooling capacity 60 kBTU/h 0.95 kBtu/h
Nominal cooling capacity at 60Hz 0.3 kW
Oil quantity [cm3] 280 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 125
Phase 1
Process connection angle [°] 32 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection material Copper
Refrigerant R134a
Refrigerant charge [kg] [Max] 0.4 kg
RLA 0.70 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Refrigeration MT
Refrigeration HT
Start capacitor capacitance 60 µF
Suction connection angle [°] 30 °
Suction connection comments Rubber plug
Suction connection diameter [mm] 6.2 mm
Suction connection material Copper
Swept volume [cm3] 2.61 cm3
Technology Reciprocating
Total height [mm] 163 mm
Type TL
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 157 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Application energy level Universal
Applications HBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 15.5 Ohm
Base plate type EU small
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 4.5 A
Cut in current LST [A] 7.2 A
Description TL2.5G
Discharge connection angle [°] 28 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 5 mm
Discharge connection material Copper
Economizer No
Free gas volume [cm3] 1600 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 159 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 222 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 4.5 A
LRA HST [A] 4.5 A
LRA LST [A] 2.8 A
Main winding resistance for single-phase compressors [Ohm] 32.7 Ohm
Model number TL2.5G
Motor type CSIR
RSIR
No. of phases (compressor) 1
Nominal cooling capacity 60 kBTU/h 0.95 kBtu/h
Nominal cooling capacity at 60Hz 0.3 kW
Oil quantity [cm3] 280 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 125
Phase 1
Process connection angle [°] 32 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection material Copper
Refrigerant R134a
Refrigerant charge [kg] [Max] 0.4 kg
RLA 0.70 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Refrigeration MT
Refrigeration HT
Start capacitor capacitance 60 µF
Suction connection angle [°] 30 °
Suction connection comments Rubber plug
Suction connection diameter [mm] 6.2 mm
Suction connection material Copper
Swept volume [cm3] 2.61 cm3
Technology Reciprocating
Total height [mm] 163 mm
Type TL
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 157 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Refrigerant: R134a, Segment usage: Refrigeration HT;Refrigeration LT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220/1/50 220/1/60
