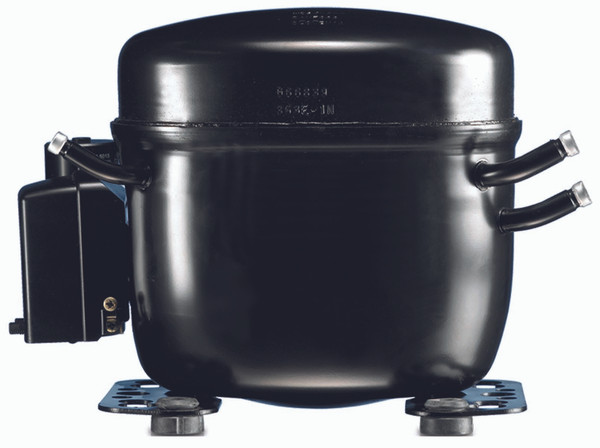

195B0193 Danfoss FR

Write a Review
SKU:
195B0193
Availability:
2 - 3 weeks

Product details Gross weight 11.09 kg Net weight 11.07 kg Gross weight 11.09 kg Net weight 11.07 kg   A…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 11.09 kg
Net weight 11.07 kg
Gross weight 11.09 kg
Net weight 11.07 kg



Application energy level Universal
Applications HBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 12 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 9 A
Cut in current LST [A] 12.8 A
Description FR8.5G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 1350 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 9 A
LRA HST [A] 9 A
LRA LST [A] 8.4 A
Main winding resistance for single-phase compressors [Ohm] 8.9 Ohm
Model number FR8.5G
Motor type CSIR
RSIR
No. of phases (compressor) 1
Oil quantity [cm3] 450 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R134a
Refrigerant charge [kg] [Max] 0.9 kg
RLA 1.60 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Refrigeration MT
Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 30 °
Suction connection comments Al-cap
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 7.95 cm3
Technology Reciprocating
Total height [mm] 196 mm
Type FR
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Application energy level Universal
Applications HBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 12 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 9 A
Cut in current LST [A] 12.8 A
Description FR8.5G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 1350 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 9 A
LRA HST [A] 9 A
LRA LST [A] 8.4 A
Main winding resistance for single-phase compressors [Ohm] 8.9 Ohm
Model number FR8.5G
Motor type CSIR
RSIR
No. of phases (compressor) 1
Oil quantity [cm3] 450 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R134a
Refrigerant charge [kg] [Max] 0.9 kg
RLA 1.60 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Refrigeration MT
Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 30 °
Suction connection comments Al-cap
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 7.95 cm3
Technology Reciprocating
Total height [mm] 196 mm
Type FR
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Refrigerant: R134a, Segment usage: Refrigeration HT;Refrigeration LT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220/1/50 220/1/60

Product details

Gross weight 11.09 kg
Net weight 11.07 kg
Gross weight 11.09 kg
Net weight 11.07 kg



Application energy level Universal
Applications HBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 12 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 9 A
Cut in current LST [A] 12.8 A
Description FR8.5G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 1350 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 9 A
LRA HST [A] 9 A
LRA LST [A] 8.4 A
Main winding resistance for single-phase compressors [Ohm] 8.9 Ohm
Model number FR8.5G
Motor type CSIR
RSIR
No. of phases (compressor) 1
Oil quantity [cm3] 450 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R134a
Refrigerant charge [kg] [Max] 0.9 kg
RLA 1.60 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Refrigeration MT
Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 30 °
Suction connection comments Al-cap
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 7.95 cm3
Technology Reciprocating
Total height [mm] 196 mm
Type FR
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Application energy level Universal
Applications HBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 12 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 9 A
Cut in current LST [A] 12.8 A
Description FR8.5G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 1350 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 9 A
LRA HST [A] 9 A
LRA LST [A] 8.4 A
Main winding resistance for single-phase compressors [Ohm] 8.9 Ohm
Model number FR8.5G
Motor type CSIR
RSIR
No. of phases (compressor) 1
Oil quantity [cm3] 450 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R134a
Refrigerant charge [kg] [Max] 0.9 kg
RLA 1.60 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Refrigeration MT
Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 30 °
Suction connection comments Al-cap
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 7.95 cm3
Technology Reciprocating
Total height [mm] 196 mm
Type FR
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
×
