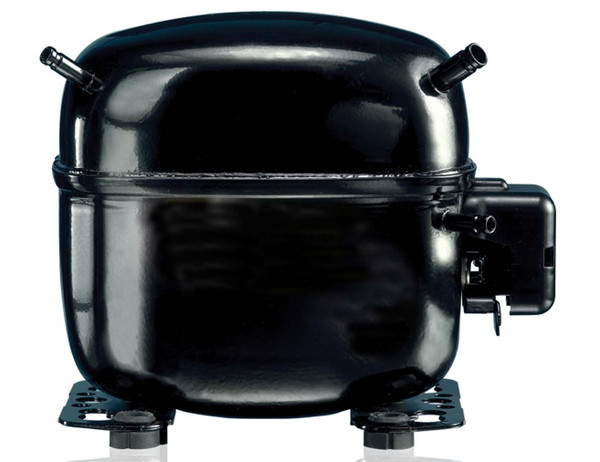

195B0075 Danfoss Reciprocating compressor, SC10DL

Description

Description

Product details

Gross weight

13.85 kg

Net weight

13.77 kg

Gross weight	13.85 kg
Net weight	13.77 kg

Application energy level	Universal MBP/HBP
Applications	HBP MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]	13.5 Ohm
Base plate type	Universal
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Compressor power supply [V/Ph/Hz]	220-240/1/50
Configuration code	Single
Cut in current HST [A]	16.2 A
Cut in current LST [A]	20.1 A
Description	SC10DL
Discharge connection angle [Â°]	37 Â°
Discharge connection comments	Rubber plug
Discharge connection diameter [mm]	6.2 mm
Discharge connection height [mm]	100 mm
Discharge connection material	Copper
Economizer	No
Free gas volume [cm3]	1410 cm3
Frequency [Hz]	50
Height from baseplate [mm]	203 mm
High value of nominal voltage at 50Hz [V]	240 V
High value of voltage range at 50Hz [V]	255 V
Length [mm]	255 mm
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	220 V
Low value of voltage range at 50Hz [V]	187 V
LRA HST 60Hz [A]	16.2 A
LRA HST [A]	16.2 A
LRA LST [A]	15.8 A
Main winding resistance for single-phase compressors [Ohm]	5.1 Ohm
Model number	SC10DL
Motor type	CSIR

No. of phases (compressor)	1
Oil quantity [cm3]	600 cm3
Oil type	POE
Packing format	Industrial pack
Packing quantity	80
Process connection angle [Â°]	37 Â°
Process connection comments	Rubber plug
Process connection diameter [mm]	6.2 mm
Process connection height [mm]	183 mm
Process connection material	Copper
Refrigerant	R404A R407C R507
Refrigerant charge [kg] [Max]	1.3 kg
RLA	3.10 A
Rotational speed at 50Hz [rpm]	3000 rpm
Segment usage	Refrigeration MT Refrigeration HT
Speed Platform	Fixed-speed
Start capacitor capacitance	80 ÂµF
Suction connection angle [Â°]	37 Â°
Suction connection comments	Rubber plug
Suction connection diameter [mm]	8.2 mm
Suction connection height [mm]	183 mm
Suction connection material	Copper
Swept volume [cm3]	10.29 cm3
Technology	Reciprocating
Total height [mm]	209 mm
Type	SC
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Width [mm]	151 mm
Winding temperature short term [Â°C] [Max]	135 Â°C
Winding temperature stat [Â°C] [Max]	125 Â°C

Application energy level	Universal MBP/HBP
Applications	HBP MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]	13.5 Ohm
Base plate type	Universal
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Compressor power supply [V/Ph/Hz]	220-240/1/50
Configuration code	Single
Cut in current HST [A]	16.2 A
Cut in current LST [A]	20.1 A
Description	SC10DL
Discharge connection angle [Â°]	37 Â°
Discharge connection comments	Rubber plug
Discharge connection diameter [mm]	6.2 mm
Discharge connection height [mm]	100 mm
Discharge connection material	Copper
Economizer	No
Free gas volume [cm3]	1410 cm3
Frequency [Hz]	50
Height from baseplate [mm]	203 mm
High value of nominal voltage at 50Hz [V]	240 V
High value of voltage range at 50Hz [V]	255 V
Length [mm]	255 mm
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	220 V
Low value of voltage range at 50Hz [V]	187 V
LRA HST 60Hz [A]	16.2 A
LRA HST [A]	16.2 A
LRA LST [A]	15.8 A
Main winding resistance for single-phase compressors [Ohm]	5.1 Ohm
Model number	SC10DL
Motor type	CSIR
No. of phases (compressor)	1
Oil quantity [cm3]	600 cm3
Oil type	POE
Packing format	Industrial pack
Packing quantity	80
Process connection angle [Â°]	37 Â°
Process connection comments	Rubber plug
Process connection diameter [mm]	6.2 mm
Process connection height [mm]	183 mm
Process connection material	Copper
Refrigerant	R404A R407C R507
Refrigerant charge [kg] [Max]	1.3 kg
RLA	3.10 A
Rotational speed at 50Hz [rpm]	3000 rpm
Segment usage	Refrigeration MT Refrigeration HT
Speed Platform	Fixed-speed
Start capacitor capacitance	80 ÂµF
Suction connection angle [Â°]	37 Â°
Suction connection comments	Rubber plug
Suction connection diameter [mm]	8.2 mm
Suction connection height [mm]	183 mm
Suction connection material	Copper
Swept volume [cm3]	10.29 cm3
Technology	Reciprocating
Total height [mm]	209 mm
Type	SC
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Width [mm]	151 mm
Winding temperature short term [Â°C] [Max]	135 Â°C
Winding temperature stat [Â°C] [Max]	125 Â°C

Refrigerant: R404A; R407C; R507, Segment usage: Refrigeration HT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220-240/1/50
