Description
Flow [l/min]: 0.142, Flow [gpm]: 0.037, Operating pressure [barg] [Max]: 70, Operating pressure [psig] [Max]: 1000, Nozzle/house material: AISI 303, Nozzle thread: 12/24 UNC
Product details
| Gross weight | 0.01 kg |
| Net weight | 0.01 kg |
| Gross weight | 0.01 kg |
| Net weight | 0.01 kg |

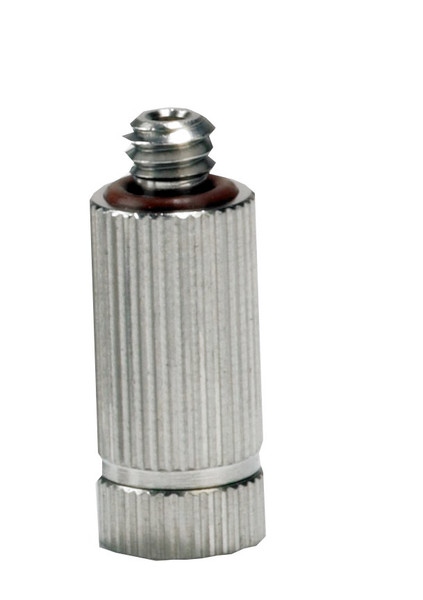

| Description | Water mist nozzles with anti-drip |
| Flow [gph] | 2.22 gal/h |
| Flow [gpm] | 0.037 gal/min |
| Flow [l/h] | 8.5 L/h |
| Flow [l/min] | 0.142 L/min |
| Nozzle thread | 12/24 UNC |
| Nozzle/house material | AISI 303 |
| Operating pressure [barg] [Max] | 70 barg |
| Operating pressure [psig] [Max] | 1000 psig |
| Orifice size [in] | 0.013 in |
| Orifice size [mm] | 0.33 mm |
| Product group | Accessory |
| Product name | Nozzles |
| Spray angle | 60º |
| Type | Nozzle |
| Type designation | Nozzle |
| Description | Water mist nozzles with anti-drip |
| Flow [gph] | 2.22 gal/h |
| Flow [gpm] | 0.037 gal/min |
| Flow [l/h] | 8.5 L/h |
| Flow [l/min] | 0.142 L/min |
| Nozzle thread | 12/24 UNC |
| Nozzle/house material | AISI 303 |
| Operating pressure [barg] [Max] | 70 barg |
| Operating pressure [psig] [Max] | 1000 psig |
| Orifice size [in] | 0.013 in |
| Orifice size [mm] | 0.33 mm |
| Product group | Accessory |
| Product name | Nozzles |
| Spray angle | 60º |
| Type | Nozzle |
| Type designation | Nozzle |
