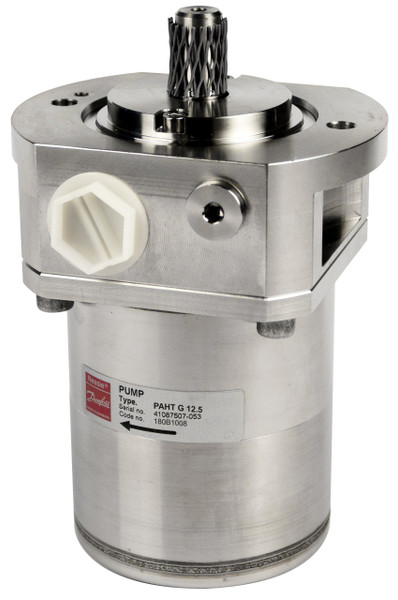

180B6133 Danfoss Pump, PAHT G 12.5 Ex

Write a Review
SKU:
180B6133
Availability:
2 - 3 weeks

Product details Gross weight 8.32 kg Net weight 8.27 kg Gross weight 8.32 kg Net weight 8.27 kg   Ambie…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 8.32 kg
Net weight 8.27 kg
Gross weight 8.32 kg
Net weight 8.27 kg



Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Ambient temperature [°F] [Max] 122 °F
Ambient temperature [°F] [Min] 32 °F
ATEX compliance Ex II 2G cb T6 / Ex II 3G c T6
Body material AISI 304
Country of origin Denmark
Displacement [cm³/rev] 12.5 cm3/rev
Displacement [in³/rev] 0.76 in3/rev
Drain connection size [in] 1/4 in
Drain connection standard BSPP
Drain connection type Thread
Flow [gpm] [Max] 6.72 gal/min
Flow [gpm] [Min] 2.65 gal/min
Flow [l/min] [Max] 27.71 L/min
Flow [l/min] [Min] 10.21 L/min
Inlet connection size [in] 3/4 in
Inlet connection standard BSPP
Inlet connection type Thread
Inlet pressure [barg] [Max] 4 barg
Inlet pressure [barg] [Min] 0 barg
Inlet pressure [psig] [Max] 58 psig
Inlet pressure [psig] [Min] 0 psig
Inlet pressure peak [barg] [Max] 4 barg
Inlet pressure peak [psig] [Max] 58 psig
Media temperature [°C] [Max] 50 °C
Media temperature [°C] [Min] 2 °C
Media temperature [°F] [Max] 122 °F
Media temperature [°F] [Min] 36 °F
Outlet connection size [in] 3/8 in
Outlet connection standard BSPP
Outlet connection type Thread
Outlet pressure [barg] [Max] 140 barg
Outlet pressure [barg] [Min] 30 barg
Outlet pressure [psig] [Max] 2030 psig
Outlet pressure [psig] [Min] 435 psig
Outside dimensions of packaging LxWxH [in] 10,7x5,9x5,4
Outside dimensions of packaging LxWxH [mm] 274x151x137
Product group Pump
Product name PAHT G pumps
Seal Material NBR
Serviceable Spare parts PAHT G 10/12.5
Sound pressure level [dB(A)] 75 dBA
Speed continuous[rpm] [Min] 1000 rpm
Speed [rpm] [Max] 2400 rpm
Speed [rpm] [Min] 1000 rpm
Type PAHT G 10-12.5
Type designation PAHT G 12.5 Ex
Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Ambient temperature [°F] [Max] 122 °F
Ambient temperature [°F] [Min] 32 °F
ATEX compliance Ex II 2G cb T6 / Ex II 3G c T6
Body material AISI 304
Country of origin Denmark
Displacement [cm³/rev] 12.5 cm3/rev
Displacement [in³/rev] 0.76 in3/rev
Drain connection size [in] 1/4 in
Drain connection standard BSPP
Drain connection type Thread
Flow [gpm] [Max] 6.72 gal/min
Flow [gpm] [Min] 2.65 gal/min
Flow [l/min] [Max] 27.71 L/min
Flow [l/min] [Min] 10.21 L/min
Inlet connection size [in] 3/4 in
Inlet connection standard BSPP
Inlet connection type Thread
Inlet pressure [barg] [Max] 4 barg
Inlet pressure [barg] [Min] 0 barg
Inlet pressure [psig] [Max] 58 psig
Inlet pressure [psig] [Min] 0 psig
Inlet pressure peak [barg] [Max] 4 barg
Inlet pressure peak [psig] [Max] 58 psig
Media temperature [°C] [Max] 50 °C
Media temperature [°C] [Min] 2 °C
Media temperature [°F] [Max] 122 °F
Media temperature [°F] [Min] 36 °F
Outlet connection size [in] 3/8 in
Outlet connection standard BSPP
Outlet connection type Thread
Outlet pressure [barg] [Max] 140 barg
Outlet pressure [barg] [Min] 30 barg
Outlet pressure [psig] [Max] 2030 psig
Outlet pressure [psig] [Min] 435 psig
Outside dimensions of packaging LxWxH [in] 10,7x5,9x5,4
Outside dimensions of packaging LxWxH [mm] 274x151x137
Product group Pump
Product name PAHT G pumps
Seal Material NBR
Serviceable Spare parts PAHT G 10/12.5
Sound pressure level [dB(A)] 75 dBA
Speed continuous[rpm] [Min] 1000 rpm
Speed [rpm] [Max] 2400 rpm
Speed [rpm] [Min] 1000 rpm
Type PAHT G 10-12.5
Type designation PAHT G 12.5 Ex
Flow [gpm] [Max]: 6.720, Flow [l/min] [Max]: 27.710, Outlet pressure [barg] [Max]: 140, Speed [rpm] [Max]: 2400, Speed [rpm] [Min]: 1000, ATEX compliance: Ex II 2G cb T6 / Ex II 3G c T6, Body material: AISI 304

Product details

Gross weight 8.32 kg
Net weight 8.27 kg
Gross weight 8.32 kg
Net weight 8.27 kg



Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Ambient temperature [°F] [Max] 122 °F
Ambient temperature [°F] [Min] 32 °F
ATEX compliance Ex II 2G cb T6 / Ex II 3G c T6
Body material AISI 304
Country of origin Denmark
Displacement [cm³/rev] 12.5 cm3/rev
Displacement [in³/rev] 0.76 in3/rev
Drain connection size [in] 1/4 in
Drain connection standard BSPP
Drain connection type Thread
Flow [gpm] [Max] 6.72 gal/min
Flow [gpm] [Min] 2.65 gal/min
Flow [l/min] [Max] 27.71 L/min
Flow [l/min] [Min] 10.21 L/min
Inlet connection size [in] 3/4 in
Inlet connection standard BSPP
Inlet connection type Thread
Inlet pressure [barg] [Max] 4 barg
Inlet pressure [barg] [Min] 0 barg
Inlet pressure [psig] [Max] 58 psig
Inlet pressure [psig] [Min] 0 psig
Inlet pressure peak [barg] [Max] 4 barg
Inlet pressure peak [psig] [Max] 58 psig
Media temperature [°C] [Max] 50 °C
Media temperature [°C] [Min] 2 °C
Media temperature [°F] [Max] 122 °F
Media temperature [°F] [Min] 36 °F
Outlet connection size [in] 3/8 in
Outlet connection standard BSPP
Outlet connection type Thread
Outlet pressure [barg] [Max] 140 barg
Outlet pressure [barg] [Min] 30 barg
Outlet pressure [psig] [Max] 2030 psig
Outlet pressure [psig] [Min] 435 psig
Outside dimensions of packaging LxWxH [in] 10,7x5,9x5,4
Outside dimensions of packaging LxWxH [mm] 274x151x137
Product group Pump
Product name PAHT G pumps
Seal Material NBR
Serviceable Spare parts PAHT G 10/12.5
Sound pressure level [dB(A)] 75 dBA
Speed continuous[rpm] [Min] 1000 rpm
Speed [rpm] [Max] 2400 rpm
Speed [rpm] [Min] 1000 rpm
Type PAHT G 10-12.5
Type designation PAHT G 12.5 Ex
Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Ambient temperature [°F] [Max] 122 °F
Ambient temperature [°F] [Min] 32 °F
ATEX compliance Ex II 2G cb T6 / Ex II 3G c T6
Body material AISI 304
Country of origin Denmark
Displacement [cm³/rev] 12.5 cm3/rev
Displacement [in³/rev] 0.76 in3/rev
Drain connection size [in] 1/4 in
Drain connection standard BSPP
Drain connection type Thread
Flow [gpm] [Max] 6.72 gal/min
Flow [gpm] [Min] 2.65 gal/min
Flow [l/min] [Max] 27.71 L/min
Flow [l/min] [Min] 10.21 L/min
Inlet connection size [in] 3/4 in
Inlet connection standard BSPP
Inlet connection type Thread
Inlet pressure [barg] [Max] 4 barg
Inlet pressure [barg] [Min] 0 barg
Inlet pressure [psig] [Max] 58 psig
Inlet pressure [psig] [Min] 0 psig
Inlet pressure peak [barg] [Max] 4 barg
Inlet pressure peak [psig] [Max] 58 psig
Media temperature [°C] [Max] 50 °C
Media temperature [°C] [Min] 2 °C
Media temperature [°F] [Max] 122 °F
Media temperature [°F] [Min] 36 °F
Outlet connection size [in] 3/8 in
Outlet connection standard BSPP
Outlet connection type Thread
Outlet pressure [barg] [Max] 140 barg
Outlet pressure [barg] [Min] 30 barg
Outlet pressure [psig] [Max] 2030 psig
Outlet pressure [psig] [Min] 435 psig
Outside dimensions of packaging LxWxH [in] 10,7x5,9x5,4
Outside dimensions of packaging LxWxH [mm] 274x151x137
Product group Pump
Product name PAHT G pumps
Seal Material NBR
Serviceable Spare parts PAHT G 10/12.5
Sound pressure level [dB(A)] 75 dBA
Speed continuous[rpm] [Min] 1000 rpm
Speed [rpm] [Max] 2400 rpm
Speed [rpm] [Min] 1000 rpm
Type PAHT G 10-12.5
Type designation PAHT G 12.5 Ex
×
