Description
Flow [gpm] [Max]: 14.480, Flow [l/min] [Max]: 55.680, Outlet pressure [barg] [Max]: 160, Speed [rpm] [Max]: 1800, Speed [rpm] [Min]: 700, Body material: AISI 304
Product details
| Gross weight | 23 kg |
| Net weight | 23 kg |
| Gross weight | 23 kg |
| Net weight | 23 kg |
| Ambient temperature [°C] [Max] | 50 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Ambient temperature [°F] [Max] | 122 °F |
| Ambient temperature [°F] [Min] | 32 °F |
| Body material | AISI 304 |
| Country of origin | Denmark |

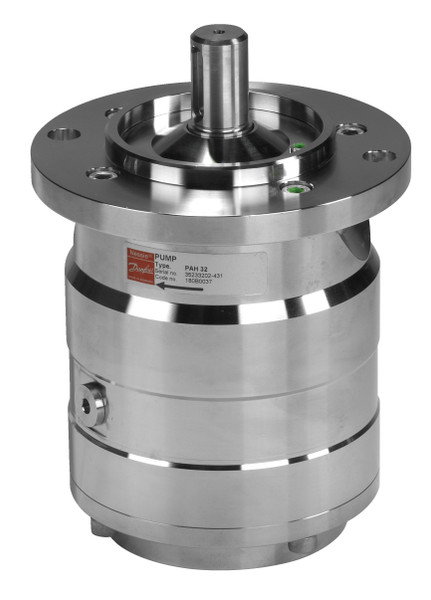

| Description | PAH 32 |
| Direction | CCW |
| Displacement [cm³/rev] | 32 cm3/rev |
| Displacement [in³/rev] | 1.95 in3/rev |
| Drain connection size [in] | 1/4 in |
| Drain connection standard | BSPP |
| Drain connection type | Thread |
| Flow [gpm] [Max] | 14.48 gal/min |
| Flow [gpm] [Min] | 5.18 gal/min |
| Flow [l/min] [Max] | 55.68 L/min |
| Flow [l/min] [Min] | 19.93 L/min |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection standard | BSPP |
| Inlet connection type | Thread |
| Inlet pressure [barg] [Max] | 4 barg |
| Inlet pressure [barg] [Min] | 0 barg |
| Inlet pressure [psig] [Max] | 58 psig |
| Inlet pressure [psig] [Min] | 0 psig |
| Media temperature [°C] [Max] | 50 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 122 °F |
| Media temperature [°F] [Min] | 36 °F |
| Outlet connection size [in] | 3/4 in |
| Outlet connection standard | BSPP |
| Outlet connection type | Thread |
| Outlet pressure [barg] [Max] | 160 barg |
| Outlet pressure [barg] [Min] | 30 barg |
| Outlet pressure [psig] [Max] | 2320 psig |
| Outlet pressure [psig] [Min] | 435 psig |
| Outside dimensions of packaging LxWxH [in] | 11,8x10,6x10 |
| Outside dimensions of packaging LxWxH [mm] | 300x270x255 |
| Product group | Pump |
| Product name | PAH pumps |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 79 dBA |
| Speed continuous[rpm] [Min] | 700 rpm |
| Speed [rpm] [Max] | 1800 rpm |
| Speed [rpm] [Min] | 700 rpm |
| Type | PAH 20-32 |
| Type designation | PAH 32 CCW |
| Ambient temperature [°C] [Max] | 50 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Ambient temperature [°F] [Max] | 122 °F |
| Ambient temperature [°F] [Min] | 32 °F |
| Body material | AISI 304 |
| Country of origin | Denmark |
| Description | PAH 32 |
| Direction | CCW |
| Displacement [cm³/rev] | 32 cm3/rev |
| Displacement [in³/rev] | 1.95 in3/rev |
| Drain connection size [in] | 1/4 in |
| Drain connection standard | BSPP |
| Drain connection type | Thread |
| Flow [gpm] [Max] | 14.48 gal/min |
| Flow [gpm] [Min] | 5.18 gal/min |
| Flow [l/min] [Max] | 55.68 L/min |
| Flow [l/min] [Min] | 19.93 L/min |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection standard | BSPP |
| Inlet connection type | Thread |
| Inlet pressure [barg] [Max] | 4 barg |
| Inlet pressure [barg] [Min] | 0 barg |
| Inlet pressure [psig] [Max] | 58 psig |
| Inlet pressure [psig] [Min] | 0 psig |
| Media temperature [°C] [Max] | 50 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 122 °F |
| Media temperature [°F] [Min] | 36 °F |
| Outlet connection size [in] | 3/4 in |
| Outlet connection standard | BSPP |
| Outlet connection type | Thread |
| Outlet pressure [barg] [Max] | 160 barg |
| Outlet pressure [barg] [Min] | 30 barg |
| Outlet pressure [psig] [Max] | 2320 psig |
| Outlet pressure [psig] [Min] | 435 psig |
| Outside dimensions of packaging LxWxH [in] | 11,8x10,6x10 |
| Outside dimensions of packaging LxWxH [mm] | 300x270x255 |
| Product group | Pump |
| Product name | PAH pumps |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 79 dBA |
| Speed continuous[rpm] [Min] | 700 rpm |
| Speed [rpm] [Max] | 1800 rpm |
| Speed [rpm] [Min] | 700 rpm |
| Type | PAH 20-32 |
| Type designation | PAH 32 CCW |
