Description
VLT Soft Starter MCD 500, 200-525 VAC, 619A, AC53a 3-30:50-6, IP00,Control Voltage: 24 VAC/VDC MCD50619CT5G4X00CV1VLT
Product Details‚ 175G5517

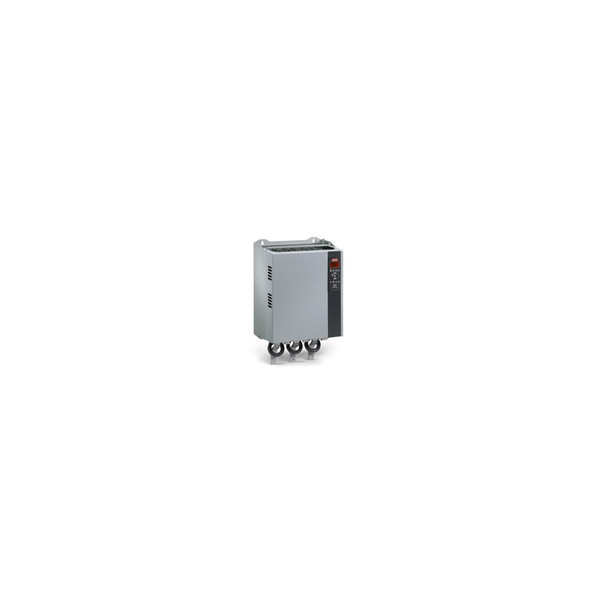

VLT Soft Starter MCD 500
VLT Soft Starter MCD 500 is a total motor starting solution.
Current transformers measure motor current and provide feedback for controlled motor ramp profiles.AAC, the Adaptive Acceleration Control automatically employs the best starting and stopping profile for the application.
VLT Soft Starter MCD 500
200-525 VAC, 619A, AC53a 3-30:50-6, IP00,
MCD50619CT5G4X00CV1
| Characteristic | Value |
|---|---|
| Product group | VLT Soft Starter MCD |
| MCD Series | (5) 500 |
| Current Rating | (0619) 619A, AC53a 3-30:50-6 |
| Bypass | (C) Continuos WO.Int.By Contac |
| Phase | (T) Three phase |
| Mains Voltage | (5) 200-525 VAC |
| Enclosure | (G4) Frame size 4 |
| Reserved | (X) Reserved |
| IP Rating | (00) IP00 |
| Control Voltage | (CV1) 24 VAC/VDC |
| Tipocode Part 1 | MCD50619CT5G4X00CV1 |
| Product Catalog | Global (Standard) |
| Vendor Region | Southern Europe |
| Vendor | Factory DK |
| Calculated Gross Weight | 95.500 |
| Calculated Net Weight [kg] | 45.000 |
