Description

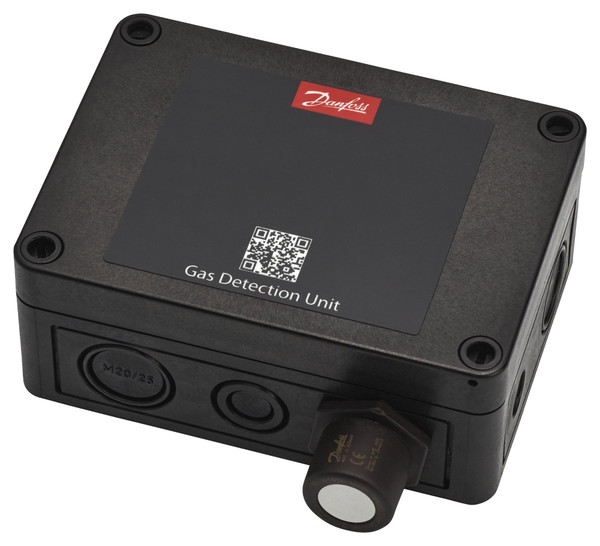

Product name: Gas detection unit, Type: GDHF, Gas detecting sensor version: Basic, Sensor 1 type: Semiconductor, Refrigerants: R404A;R507
Product details
| Gross weight | 0.35 kg |
| Net weight | 0.27 kg |
| Gross weight | 0.35 kg |
| Net weight | 0.27 kg |
| Alarmlimits high [ppm] sensor1 | 900 ppm |
| Alarmlimits low [ppm] sensor1 | 500 ppm |
| Frequency [Hz] | 50/60 Hz |
| Gas detecting sensor version | Basic |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration Certificate |
| Power consumption [A] | 0.25 A |
| Product group | Sensors |
| Product name | Gas detection unit |
| Quantity per packing format | 1 pc |
| Refrig. range [ppm] sensor1 [Max] | 2000 ppm |
| Refrig. range [ppm] sensor1 [Min] | 0 ppm |
| Refrigerants | R404A R507 |
| Relative humidity (RH) [%] [Max] | 90 % |
| Relative humidity (RH) [%] [Min] | 15 % |
| Response delay [s] | 0 ' |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] AC [Max] | 29 V |
| Supply voltage [V] AC [Min] | 19 V |
| Supply voltage [V] DC [Max] | 29 V |
| Supply voltage [V] DC [Min] | 19 V |
| Temperature range [°C] [Max] | 50 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 122 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GDHF |
| Alarmlimits high [ppm] sensor1 | 900 ppm |
| Alarmlimits low [ppm] sensor1 | 500 ppm |
| Frequency [Hz] | 50/60 Hz |
| Gas detecting sensor version | Basic |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration Certificate |
| Power consumption [A] | 0.25 A |
| Product group | Sensors |
| Product name | Gas detection unit |
| Quantity per packing format | 1 pc |
| Refrig. range [ppm] sensor1 [Max] | 2000 ppm |
| Refrig. range [ppm] sensor1 [Min] | 0 ppm |
| Refrigerants | R404A R507 |
| Relative humidity (RH) [%] [Max] | 90 % |
| Relative humidity (RH) [%] [Min] | 15 % |
| Response delay [s] | 0 ' |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] AC [Max] | 29 V |
| Supply voltage [V] AC [Min] | 19 V |
| Supply voltage [V] DC [Max] | 29 V |
| Supply voltage [V] DC [Min] | 19 V |
| Temperature range [°C] [Max] | 50 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 122 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GDHF |
