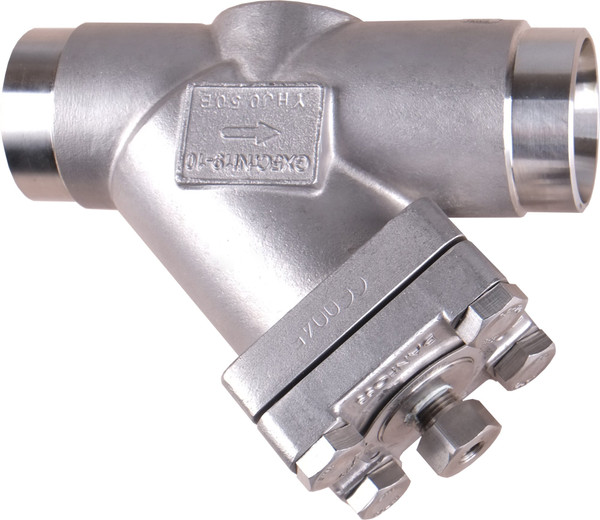

Description
Inlet connection type: Butt weld, Inlet connection size [mm]: 25.0, Outlet connection type: Butt weld, Outlet connection size [mm]: 25.0, Max. Working Pressure [bar]: 52.0
Product details
| Gross weight | 2.99 kg |
| Net weight | 2.7 kg |
| EAN | 5702428990356 |
| Gross weight | 2.99 kg |
| Net weight | 2.7 kg |
| EAN | 5702428990356 |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection standard | ASME B 36.19M SCHEDULE 40 |
| Cv value [gal/min] 100 plain | 47.11 gal/min |
| Cv value [gal/min] 100 pleated | 60.76 gal/min |
| Cv value [gal/min] 150 plain | 46.23 gal/min |
| Cv value [gal/min] 38 plain | 51.07 gal/min |
| Cv value [gal/min] 72 plain | 48.87 gal/min |
| Cv value [gal/min] 72 pleated | 63.84 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Fluid Group | I |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ100 plain | 10.5 m3/h |
| Kv value [m3/h] µ150 plain | 10.7 m3/h |
| Kv value [m3/h] µ150 pleated | 13.8 m3/h |
| Kv value [m3/h] µ250 plain | 11.1 m3/h |
| Kv value [m3/h] µ250 pleated | 14.5 m3/h |
| Kv value [m3/h] µ500 plain | 11.6 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| Product description | Filter housing |
| Product family name | FIA SS straight plain FIA SS straight pleated |
| Product group | Strainers |
| Product name | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R507 R513A R600 R600a R717 R744 RE170 |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | FIA SS 25 |
| Valve version | Standard version |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection standard | ASME B 36.19M SCHEDULE 40 |
| Cv value [gal/min] 100 plain | 47.11 gal/min |
| Cv value [gal/min] 100 pleated | 60.76 gal/min |
| Cv value [gal/min] 150 plain | 46.23 gal/min |
| Cv value [gal/min] 38 plain | 51.07 gal/min |
| Cv value [gal/min] 72 plain | 48.87 gal/min |
| Cv value [gal/min] 72 pleated | 63.84 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Fluid Group | I |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ100 plain | 10.5 m3/h |
| Kv value [m3/h] µ150 plain | 10.7 m3/h |
| Kv value [m3/h] µ150 pleated | 13.8 m3/h |
| Kv value [m3/h] µ250 plain | 11.1 m3/h |
| Kv value [m3/h] µ250 pleated | 14.5 m3/h |
| Kv value [m3/h] µ500 plain | 11.6 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| Product description | Filter housing |
| Product family name | FIA SS straight plain FIA SS straight pleated |
| Product group | Strainers |
| Product name | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R507 R513A R600 R600a R717 R744 RE170 |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | FIA SS 25 |
| Valve version | Standard version |
