Description

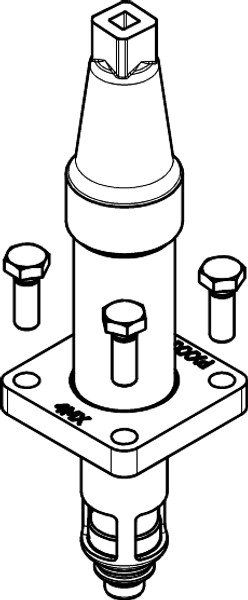

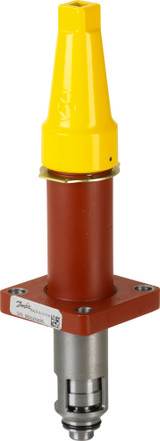

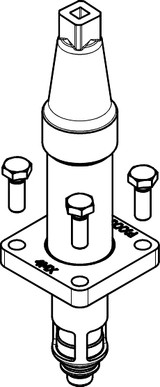

REG-LA 15-20 top complete, Used for product: REG-LA 15
Product details
| Gross weight | 1.57 kg |
| Net weight | 0.62 kg |
| EAN | 5702428818100 |
| Gross weight | 1.57 kg |
| Net weight | 0.62 kg |
| EAN | 5702428818100 |
| Brand | SVL Flexline |
| Equipment | Cap |
| Flow area [in2] | 0.056 in2 |
| Flow area [mm2] | 36.5 mm2 |
| Further information | Top complete, REG-LA |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Long |
| Packing format | Single pack |
| Parts included | 1 gasket 4 bolts Top part |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product family name | REG angle REG straight |
| Product group | Shut-off and regulating valves |
| Product name | Function module |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | REG-LA 15-20 |
| Type designation | Top complete |
| Used for product | REG-LA 15 REG-LA 20 |
| Used for product comments | Long neck for insulation |
| Brand | SVL Flexline |
| Equipment | Cap |
| Flow area [in2] | 0.056 in2 |
| Flow area [mm2] | 36.5 mm2 |
| Further information | Top complete, REG-LA |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Long |
| Packing format | Single pack |
| Parts included | 1 gasket 4 bolts Top part |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product family name | REG angle REG straight |
| Product group | Shut-off and regulating valves |
| Product name | Function module |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | REG-LA 15-20 |
| Type designation | Top complete |
| Used for product | REG-LA 15 REG-LA 20 |
| Used for product comments | Long neck for insulation |
