Description

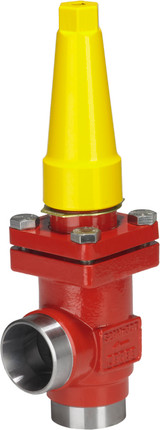

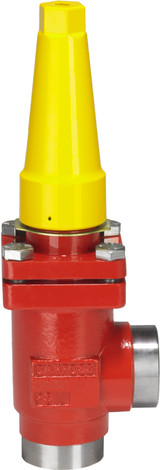

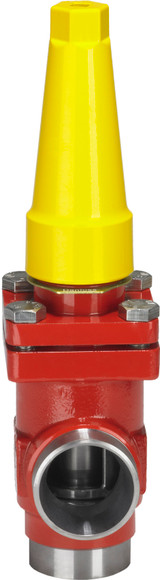

REG-SB 25-40 top complete, Used for product: REG-SB 25;REG-SB 32;REG-SB 40
Product details
| Gross weight | 3.8 kg |
| Net weight | 3.19 kg |
| EAN | 5702428474030 |
| Gross weight | 3.8 kg |
| Net weight | 3.19 kg |
| EAN | 5702428474030 |
| Body material | Steel |
| Brand | SVL Flexline |
| Category | II |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Cv value [gal/min] | 23.2 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow area [in2] | 0.823 in2 |
| Flow area [mm2] | 531 mm2 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection size [mm] | 32 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 20 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1 1/4 in |
| Outlet connection size [mm] | 32 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Product family name | REG angle |
| Product group | Shut-off and regulating valves |
| Product name | Hand operated regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | REG-SB 32 |
| Valve version | Standard version |
| Body material | Steel |
| Brand | SVL Flexline |
| Category | II |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Cv value [gal/min] | 23.2 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow area [in2] | 0.823 in2 |
| Flow area [mm2] | 531 mm2 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection size [mm] | 32 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 20 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1 1/4 in |
| Outlet connection size [mm] | 32 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Product family name | REG angle |
| Product group | Shut-off and regulating valves |
| Product name | Hand operated regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | REG-SB 32 |
| Valve version | Standard version |
