Description

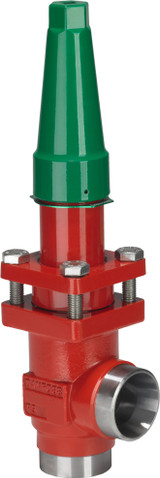

SCA-X 15-20 top complete, Used for product: SCA-X 15
Product details
| Gross weight | 2.17 kg |
| Net weight | 1.78 kg |
| EAN | 5702428472654 |
| Gross weight | 2.17 kg |
| Net weight | 1.78 kg |
| EAN | 5702428472654 |
| Approval | CE |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Cv value [gal/min] | 11.6 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 10 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.62 psi |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SCA-X |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Check Valve |
| Product family name | SCA |
| Product group | Check valves |
| Product name | Check & stop valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SCA-X 20 |
| Valve version | Standard version |
| Approval | CE |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Cv value [gal/min] | 11.6 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 10 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.62 psi |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SCA-X |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Check Valve |
| Product family name | SCA |
| Product group | Check valves |
| Product name | Check & stop valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SCA-X 20 |
| Valve version | Standard version |
