Description

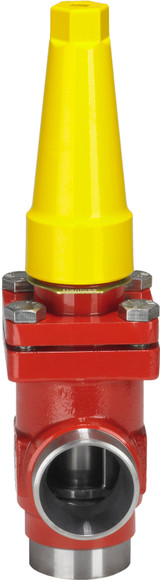

REG-SA 15-20 top complete, Used for product: REG-SA 15;REG-SA 20
Product details
| Gross weight | 2.05 kg |
| Net weight | 1.74 kg |
| EAN | 5702428473712 |
| Gross weight | 2.05 kg |
| Net weight | 1.74 kg |
| EAN | 5702428473712 |
| Body material | Steel |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 |
| Cv value [gal/min] | 1.75 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow area [in2] | 0.056 in2 |
| Flow area [mm2] | 36 mm2 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Inlet connection type | NPT |
| Kv value [m³/h] | 1.5 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Outlet connection type | NPT |
| Packing format | Single pack |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Product family name | REG angle |
| Product group | Shut-off and regulating valves |
| Product name | Hand operated regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | REG-SA 15 |
| Valve version | Standard version |
| Body material | Steel |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 |
| Cv value [gal/min] | 1.75 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow area [in2] | 0.056 in2 |
| Flow area [mm2] | 36 mm2 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Inlet connection type | NPT |
| Kv value [m³/h] | 1.5 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Outlet connection type | NPT |
| Packing format | Single pack |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Product family name | REG angle |
| Product group | Shut-off and regulating valves |
| Product name | Hand operated regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | REG-SA 15 |
| Valve version | Standard version |
