Description

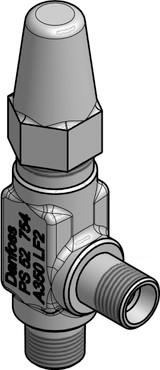

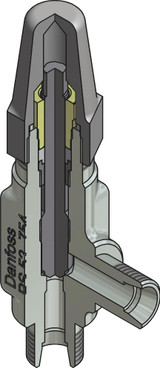

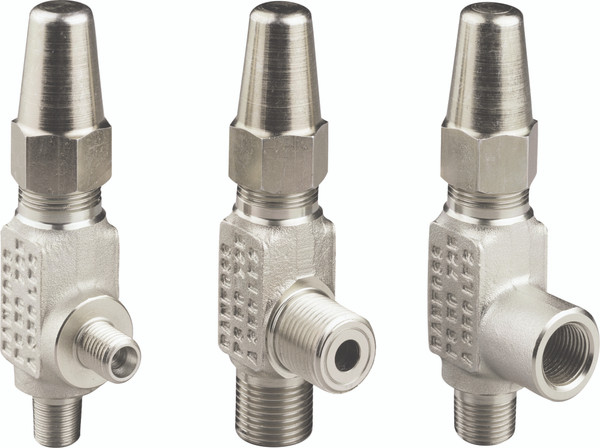

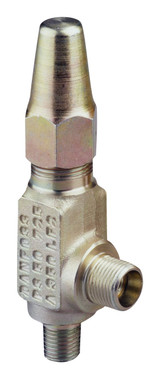

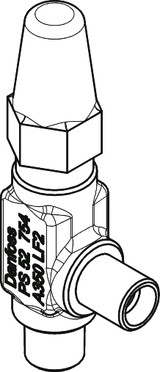

Product description: Stop Needle Valve
Product details
| Gross weight | 0.43 kg |
| Net weight | 0.37 kg |
| EAN | 5702428179348 |
| Gross weight | 0.43 kg |
| Net weight | 0.37 kg |
| EAN | 5702428179348 |
| Body material | Steel |
| Category | Art. 4, par. 3 |
| Colour Paint | Cr3 / TLP |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 DIN 3861 DIN 3901 |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction | Bi-flow |
| Fluid Group | I |
| Inlet connection size [in] | 3/8 |
| Inlet connection type | NPT |
| Inlet Internal/External | External |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [mm] | 10 mm |
| Outlet connection type | Cutting Ring |
| Packing format | Multi pack |
| Product accessories | SNV accessories |
| Product description | Stop Needle Valve |
| Product group | Shut-off and regulating valves |
| Product name | Gauge valve |
| Quantity per packing format | 12 pc |
| Serviceable | SNV spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SNV-ST |
| Valve version | Standard version |
| Body material | Steel |
| Category | Art. 4, par. 3 |
| Colour Paint | Cr3 / TLP |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 DIN 3861 DIN 3901 |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction | Bi-flow |
| Fluid Group | I |
| Inlet connection size [in] | 3/8 |
| Inlet connection type | NPT |
| Inlet Internal/External | External |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [mm] | 10 mm |
| Outlet connection type | Cutting Ring |
| Packing format | Multi pack |
| Product accessories | SNV accessories |
| Product description | Stop Needle Valve |
| Product group | Shut-off and regulating valves |
| Product name | Gauge valve |
| Quantity per packing format | 12 pc |
| Serviceable | SNV spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SNV-ST |
| Valve version | Standard version |
