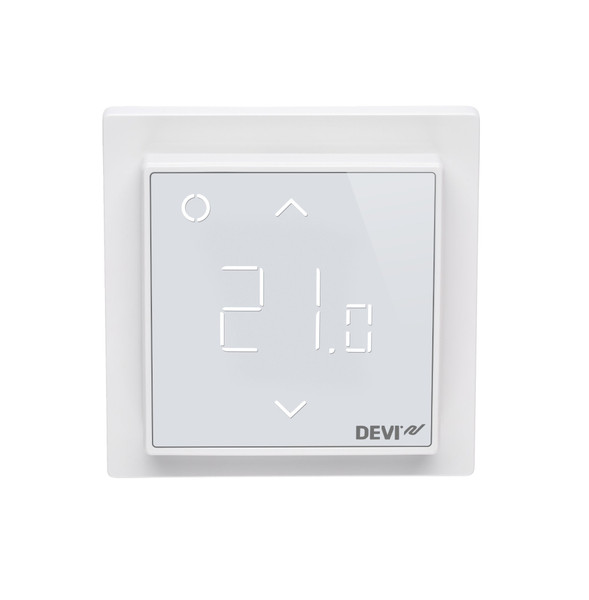

140F1140 Danfoss DEVIreg™ Smart

Write a Review
SKU:
140F1140
Availability:
2 - 3 weeks

Product details Gross weight 0.26 kg Net weight 0.26 kg EAN 5703466239629 Gross weight 0.26 kg Net weight 0.26 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.26 kg
Net weight 0.26 kg
EAN 5703466239629
Gross weight 0.26 kg
Net weight 0.26 kg
EAN 5703466239629



Ambient temperature [°C] [Max] 30 °C
Ambient temperature [°C] [Min] 0 °C
Ball presure test temperature [°C] 75 °C
Certification company CE
EAC
Intertek Semko
Colour White RAL 9016
Depth [mm] 44 mm
Description DEVIreg Smart polar white
DIN mounting No
Element IP Class 21
Frost protection [°C] 5 °C
Height [mm] 85 mm
Hysteresis (+/-) 0.2
Inductive load cos φ= 0.3 max 1A
Package depth [mm] 110 mm
Package height [mm] 84 mm
Package width [mm] 108 mm
Pollution degree 2
Product group Thermostats
Product name DEVIreg™ Smart polar white
Regulation type Hysteresis
Relay switch 1-pole
Resistive load max [A] 16
Sensor definition point [Ohm/°C] 15kΩ / 25°C
Sensor type Room + Floor
Software class A
Standby power consumption [W] [Max] 0.4 W
Storage temperature [°C] [Max] 65 °C
Storage temperature [°C] [Min] -20 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Temperature - floor [°C] [Max] 45 °C
Temperature - floor [°C] [Min] 5 °C
Temperature - room [°C] [Max] 35 °C
Temperature - room [°C] [Min] 5 °C
Temperature limiter [°C] [Max] 45 °C
Temperature limiter [°C] [Min] 5 °C
Temperature max. limiter [°C] [Max] 35 °C
Temperature max. limiter [°C] [Min] 20 °C
Temperature min. limiter [°C] [Max] 35 °C
Temperature min. limiter [°C] [Min] 10 °C
Terminal cable size max [mm²] 2 x 2.5
Type DEVIreg™ Smart
Warranty [Year] 5
Width [mm] 85 mm
Ambient temperature [°C] [Max] 30 °C
Ambient temperature [°C] [Min] 0 °C
Ball presure test temperature [°C] 75 °C
Certification company CE
EAC
Intertek Semko
Colour White RAL 9016
Depth [mm] 44 mm
Description DEVIreg Smart polar white
DIN mounting No
Element IP Class 21
Frost protection [°C] 5 °C
Height [mm] 85 mm
Hysteresis (+/-) 0.2
Inductive load cos φ= 0.3 max 1A
Package depth [mm] 110 mm
Package height [mm] 84 mm
Package width [mm] 108 mm
Pollution degree 2
Product group Thermostats
Product name DEVIreg™ Smart polar white
Regulation type Hysteresis
Relay switch 1-pole
Resistive load max [A] 16
Sensor definition point [Ohm/°C] 15kΩ / 25°C
Sensor type Room + Floor
Software class A
Standby power consumption [W] [Max] 0.4 W
Storage temperature [°C] [Max] 65 °C
Storage temperature [°C] [Min] -20 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Temperature - floor [°C] [Max] 45 °C
Temperature - floor [°C] [Min] 5 °C
Temperature - room [°C] [Max] 35 °C
Temperature - room [°C] [Min] 5 °C
Temperature limiter [°C] [Max] 45 °C
Temperature limiter [°C] [Min] 5 °C
Temperature max. limiter [°C] [Max] 35 °C
Temperature max. limiter [°C] [Min] 20 °C
Temperature min. limiter [°C] [Max] 35 °C
Temperature min. limiter [°C] [Min] 10 °C
Terminal cable size max [mm²] 2 x 2.5
Type DEVIreg™ Smart
Warranty [Year] 5
Width [mm] 85 mm
