Description

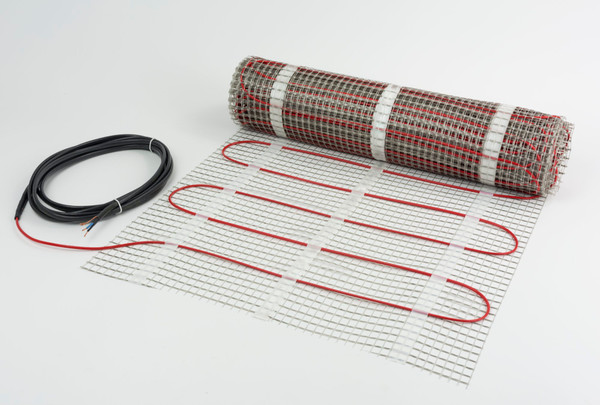

DEVImat 100T, 400W, 230V 0,5x8m, flexpipe
Product details
| Gross weight | 2.31 kg |
| Net weight | 2.29 kg |
| EAN | 5703466203125 |
| Gross weight | 2.31 kg |
| Net weight | 2.29 kg |
| EAN | 5703466203125 |
| Cable diameter [mm] | 3 mm |
| Cable resistance [Ohm] | 132 Ohm |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 4 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1 mm2 |
| Cold lead type | DTWB |
| Conductor insulation | FEP |
| Coverage area [m²] | 4 m2 |
| Deformation strength [N] | 600 N |
| Description | DEVImat 100T, 400W, 230V 0,5x8m, flexpipe |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 400 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Mat length [m] | 8 m |
| Mat output [W/m²] | 100 W/m2 |
| Mat width [m] | 0.5 m |
| Non operating temperature [°C] [Max] | 120 °C |
| Operating temperature [°C] [Max] | 115 °C |
| Outer sheath | PVDF |
| Outer sheath colour | Red |
| Package depth [mm] | 220 mm |
| Package height [mm] | 590 mm |
| Package width [mm] | 220 mm |
| Product group | Heating Mats |
| Product name | Set DEVImat™ 100T |
| Pulling strength [N] | 120 N |
| Set accessories | Flexpipe ø6.7 2.5m Black |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Thickness [mm] | 3.5 mm |
| Type | DEVImat™ 100T |
| UV Protected | No |
| Warranty [Year] | 20 |
| Cable diameter [mm] | 3 mm |
| Cable resistance [Ohm] | 132 Ohm |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 4 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1 mm2 |
| Cold lead type | DTWB |
| Conductor insulation | FEP |
| Coverage area [m²] | 4 m2 |
| Deformation strength [N] | 600 N |
| Description | DEVImat 100T, 400W, 230V 0,5x8m, flexpipe |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 400 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Mat length [m] | 8 m |
| Mat output [W/m²] | 100 W/m2 |
| Mat width [m] | 0.5 m |
| Non operating temperature [°C] [Max] | 120 °C |
| Operating temperature [°C] [Max] | 115 °C |
| Outer sheath | PVDF |
| Outer sheath colour | Red |
| Package depth [mm] | 220 mm |
| Package height [mm] | 590 mm |
| Package width [mm] | 220 mm |
| Product group | Heating Mats |
| Product name | Set DEVImat™ 100T |
| Pulling strength [N] | 120 N |
| Set accessories | Flexpipe ø6.7 2.5m Black |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Thickness [mm] | 3.5 mm |
| Type | DEVImat™ 100T |
| UV Protected | No |
| Warranty [Year] | 20 |
