Description

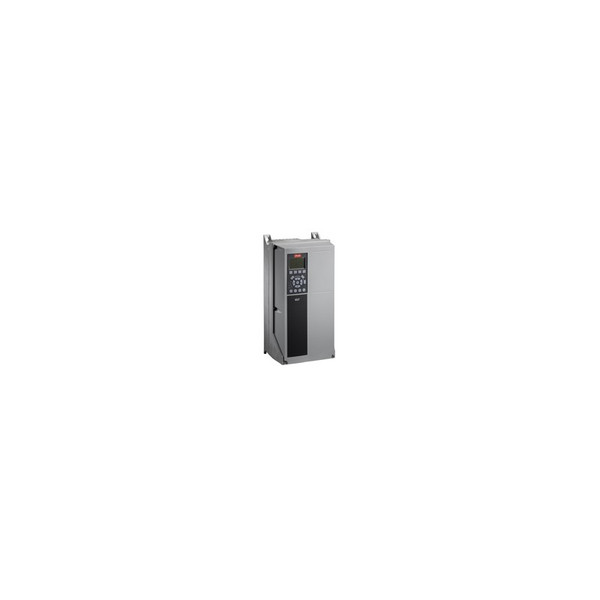

VLT AQUA Drive FC-202 1.1 KW / 1.5 HP, 380 - 480 VAC, IP55 / Type 12 Backplate, RFI Class A1/B (C1), No brake chopper FC-202P1K1T4Y55H1XGXXXXSXXXXALBXCXXXXD0
Product Details 135N5689
VLT AQUA Drive FC 202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P1K1) 1.1 KW / 1.5 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (Y55) IP55 / Type 12 Backplate |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AL) PROFINET MCA 120 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | A4 |
| Typecode Part 1 | FC-202P1K1T4Y55H1XGX |
| Typecode Part 2 | XXXSXXXXALBXCXXXXD0 |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 10.300 |
| Calculated Net Weight [kg] | 10.000 |
