Description

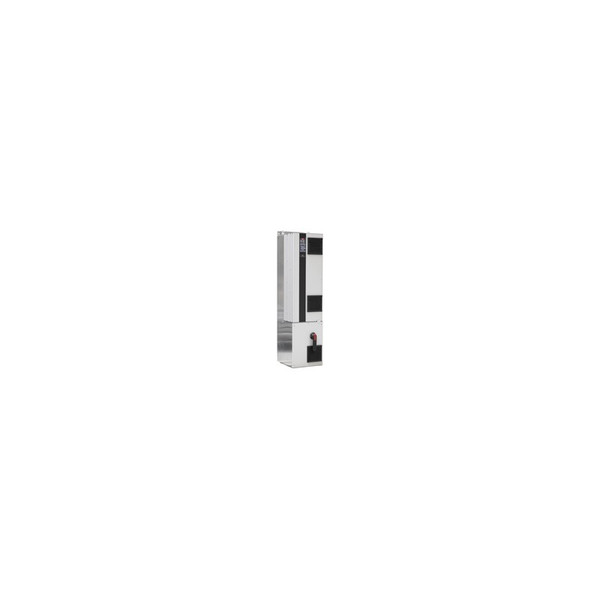

VLT Automation Drive FC-302 132 KW / 200 HP, 525-690 VAC *, IP54 / Type 12,RFI Class A2 (C3), Brake chopper FC-302N132T7E54H2BGR3XXSXXXXAXBXCXXXXDX
Product Details‚ 135N1506
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 302 |
| Power Rating | (N132) 132 KW / 200 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E54) IP54 / Tipo 12 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (B) Brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (R)Coated PCB 3C3 + Ruggedised |
| Mains Option | (3) Mains Disconnect + Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D5H |
| Tipocode Part 1 | FC-302N132T7E54H2BGR |
| Tipocode Part 2 | 3XXSXXXXAXBXCXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 166.300 |
| Calculated Net Weight [kg] | 166.000 |
