Description
Active Filter AAF380-480 VAC, 400Amp correction, IP21 / Type 1,RFI class A1, Fuse AAF006A400T4E21H4XGC7XXSXXXXAXBXCFXXXD0Advanced
Product Details ‚ 135N0825
Product Details ‚ 135N0825

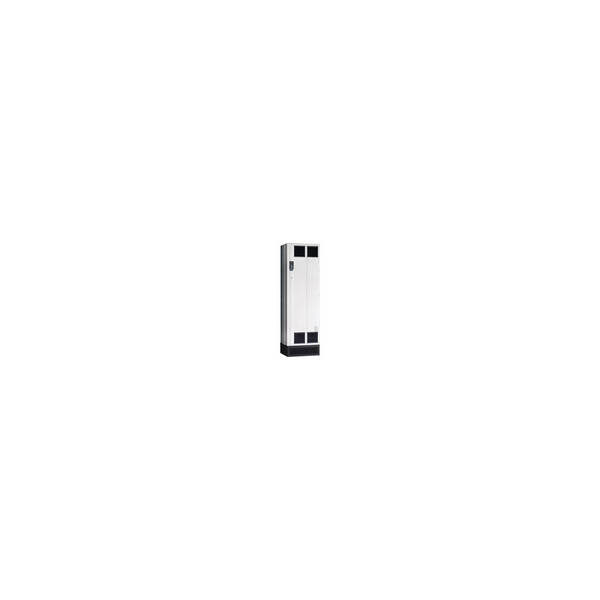

VLT Advanced Active Filter AAF
Danfoss Advanced Active Filters eliminate harmonic distortion from non
linear loads and improve system power factor.
| Characteristic | Value |
|---|---|
| Product Group | Advanced Active Filter AAF |
| VLT Series | (006) 006 |
| Current Rating | (A400) 400Amp correction |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380-480 VAC |
| Enclosure | (E21) IP21 / Tipo 1 |
| RFI Filter | (H4) RFI class A1 |
| Brake - Safe Stop | (X) No brake chopper |
| Display | (G) Graphical Control Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (7) Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Options |
| B Option | (BX) No B Option |
| C0 Options MCO | (CF) Active Filter Guard |
| C1 Options | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) 24V Backup |
| Frame Size | (E1) E1-Frane |
| Tipocode Part 1 | AAF006A400T4E21H4XGC7XXSXXXXAX |
| Tipocode Part 2 | BXCFXXXD0 |
| Product Catalog | Global (Standard) |
| Vendor Region | Southern Europe |
| Vendor | Factory US |
| Calculated Gross Weight | 575.000 |
| Calculated Net Weight [kg] | 453.000 |
| Material Gross Weight | 0.000 |
| Material Net Weight | 0.000 |
