Description
VLT AQUA Drive FC-202 2.2 KW / 3.0 HP, 200 - 240 VAC,IP55 / Type 12, RFI Class A1/B (C1),Safe Stop FC-202P2K2S2E55H1TGCXXXSXXXXAQBKCXXXXD0
Product Details‚ 135N0623

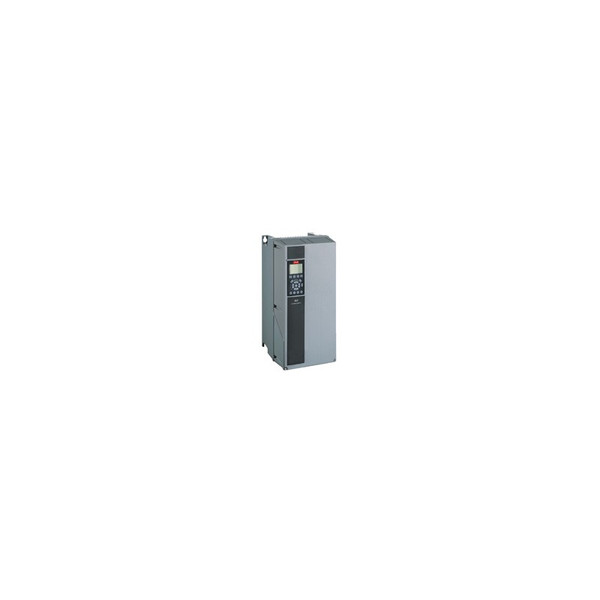

VLT AQUA Drive FC-202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P2K2) 2.2 KW / 3.0 HP |
| Phase | (S) Single phase |
| Mains Voltage | (2) 200 - 240 VAC |
| Enclosure | (E55) IP55 / Tipo 12 |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (T) Safe Stop |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AQ) Modbus TCP MCA 122 |
| B Option | (BK) MCB-101 General purp. I/O |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | B1 |
| Tipocode Part 1 | FC-202P2K2S2E55H1TGC |
| Tipocode Part 2 | XXXSXXXXAQBKCXXXXD0 |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 23.300 |
| Calculated Net Weight [kg] | 23.000 |
