Description

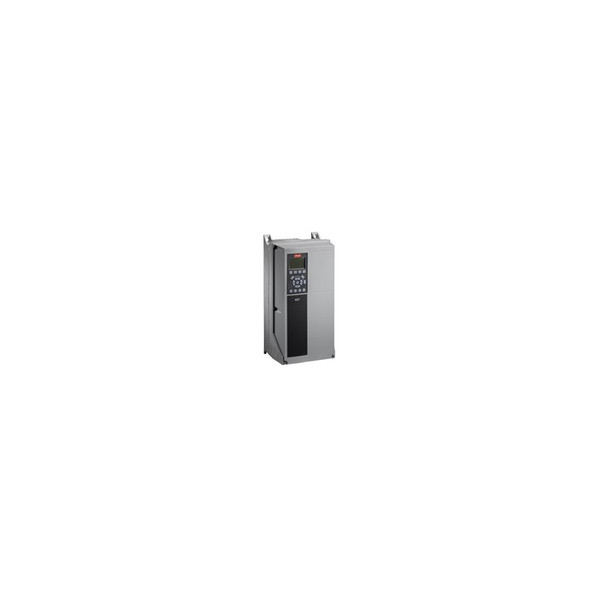

VLT HVAC Drive FC-102 4.0 KW / 5.5 HP, 380-480 VAC, Safe Stop, IP55 / Type 12 Backplate, RFI Class A2 (C3), Modbus TCP MCA 122, No B Option, Not coated PCB, No Mains Option FC-102P4K0T4Y55H2TGXXXXSXXXXAQBXCXXXXD0
Product Details 134U9978
VLT HVAC Drive FC 102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P4K0) 4.0 KW / 5.5 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (Y55) IP55 / Type 12 Backplate |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (T) Safe Stop |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AQ) Modbus TCP MCA 122 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | A4 |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102P4K0T4Y55H2TGX |
| Typecode Part 2 | XXXSXXXXAQBXCXXXXD0 |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 10.100 |
| Calculated Net Weight [kg] | 9.800 |
