Description

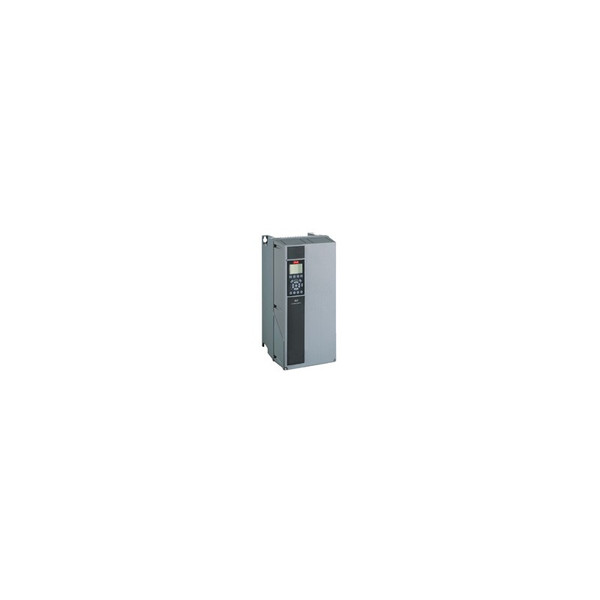

VLT HVAC Drive FC-102 400 KW / 550 HP, 525-690 VAC, No brake chopper, IP54/Type12,N3R Rdy+Heat, RFI Class A2 (C3), No A Option, No B Option, Coated PCB, No Mains Option FC-102N400T7E5SH2XGCXXXSXXXXAXBXCXXXXDX
Product Details 134U4728
VLT HVAC Drive FC 102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (N400) 400 KW / 550 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E5S) IP54/Type12,N3R Rdy+Heat |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D2H |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102N400T7E5SH2XGC |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Sales Organization | 2200 |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 125.300 |
| Calculated Net Weight [kg] | 125.000 |
