Description

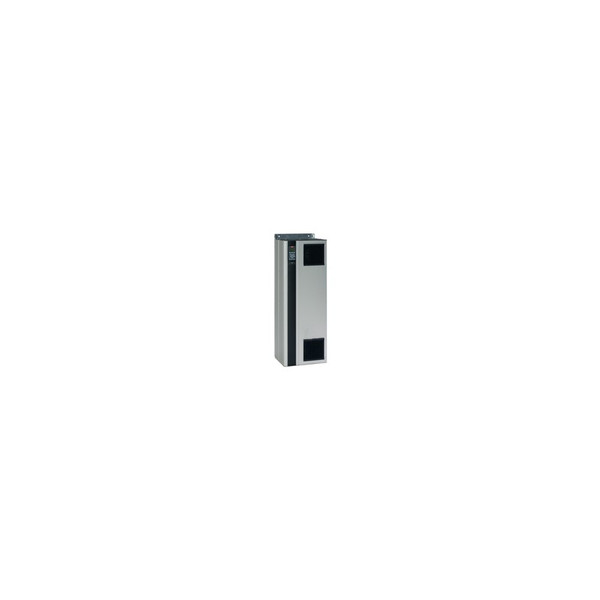

VLT HVAC Drive FC-102 200 KW / 300 HP, 380-480 VAC, Safe Stop, IP54/Type 12+main shield, RFI Class A2 (C3), PROFIBUS DP MCA 101, MCB-109 I/O, RTC Back-up, Coated PCB, No Mains Option FC-102N200T4E5MH2TGCXXXSXXXXA0B0CXXXXDX
Product Details 134U2343
VLT HVAC Drive FC 102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (N200) 200 KW / 300 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E5M) IP54/Type 12+main shield |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (T) Safe Stop |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (B0) MCB-109 I/O, RTC Back-up |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D2H |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102N200T4E5MH2TGC |
| Typecode Part 2 | XXXSXXXXA0B0CXXXXDX |
| Sales Organization | 2200 |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 125.300 |
| Calculated Net Weight [kg] | 125.000 |
