Description

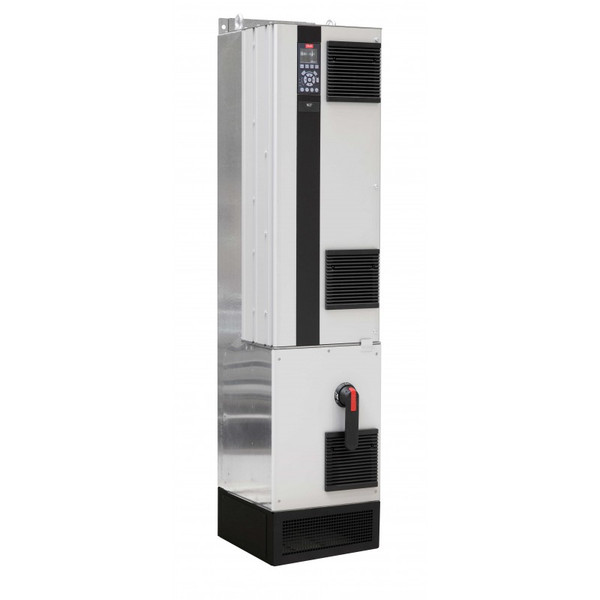

VLT Automation Drive FC-302 250 KW / 350 HP, 380-500 VAC, IP21 / Type 1,RFI Class A2 (C3), Regen Terminals FC-302N250T5E21H2RGCXXXSXXXXA0BUCXXXXDX
Product details
| Gross weight | 200.3 kg |
| Net weight | 200 kg |
| Volume | 0 l |
| EAN | 5710107969869 |
VLT AUTOMATIONDRIVE FC 300 SERIES
| Product Group | FC- | VLT AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | N250 | (N250) 250 KW / 350 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 - 500 VAC |
| Enclosure | E21 | IP21 / Type 1 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | R | Regen Terminals |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BU | MCB-103 Resolver Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | D7H | D7H |
| Typecode Part 1 | FC-302N250T5E21H2RGC | |
| Typecode Part 2 | XXXSXXXXA0BUCXXXXDX | |
| Calculated Gross Weight | 200.3 | |
| Calculated Net Weight [kg] | 200 | |
| Continuous Current (HO) [A] | 480 | |
| Continuous Current (HO) [A] | 443 | |
| Continuous Current (NO) [A] | 588 | |
| Continuous Current (NO) [A] | 535 | |
| Depth [mm] | 386,0 | |
| Depth with Option A/B [mm] | 386,0 | |
| Height [mm] | 1978,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | 720 | |
| Intermittent Current (HO) [A] | 664 | |
| Intermittent Current (NO) [A] | 647 | |
| Intermittent Current (NO) [A] | 588 | |
| kVA | 333 | |
| Material Gross Weight | 200.3 | |
| Material Net Weight | 200 | |
| Modelcode01 | FC-302N250T5E21H2RGC | |
| Modelcode02 | XXXSXXXXA0BUCXXXXDX | |
| Power 110% (NO) [KW] | 315 | |
| Power 150% (HO) [KW] | 250 | |
| Power 160% (HO) [KW] | NV | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 5004 | |
| Power Loss HO [W] | 4458 | |
| Power Loss NO [W] | 6674 | |
| Power Loss NO [W] | 5714 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Software Language Pack | X | Standard Language Pack |
| Software Release | SXXX | Latest release std. SW. |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 420,0 |
