Description

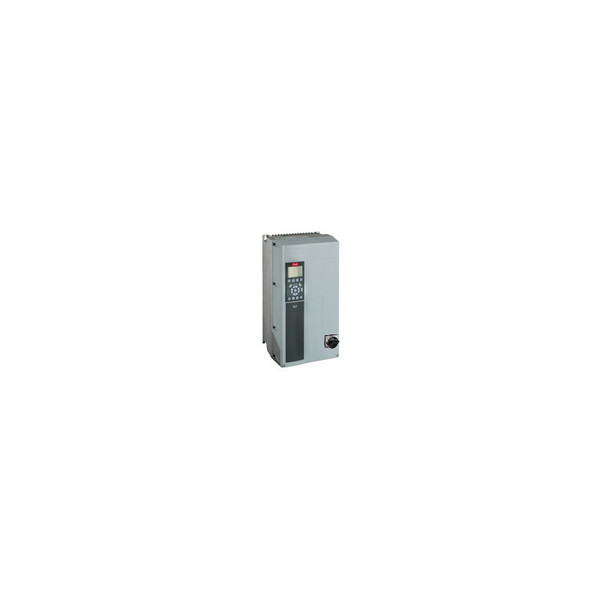

VLT Automation Drive FC-302 5.5 KW / 7.5 HP, 380-500 VAC, IP66 / NEMA 4X,Marine, ruggedised RFI A2 (C3), No brake chopper FC-302P5K5T5E66H5XGC1OXSXXXXAXBXCXXXXDX
Product details
| Gross weight | 14.25 kg |
| Net weight | 13.6 kg |
| Volume | 52.36 l |
| EAN | 5710107963904 |
VLT AUTOMATIONDRIVE FC 300 SERIES
| Product Group | FC- | VLT AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | P5K5 | (P5K5) 5.5 KW / 7.5 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 - 500 VAC |
| Enclosure | E66 | (E66) IP66 / NEMA 4X |
| RFI Filter | H5 | Marine,ruggedis RFI A2(C3) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 1 | Mains Disconnect |
| Adaptation A | O | Metric thread cable entry |
| Adaptation B | X | No adaptation |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | A5 | A5 |
| Typecode Part 1 | FC-302P5K5T5E66H5XGC | |
| Typecode Part 2 | 1OXSXXXXAXBXCXXXXDX | |
| Calculated Gross Weight | 14.4 | |
| Calculated Net Weight [kg] | 14.1 | |
| Continuous Current (HO) [A] | 13 | |
| Continuous Current (HO) [A] | 11 | |
| Continuous Current (NO) [A] | NV | |
| Continuous Current (NO) [A] | NV | |
| Depth [mm] | 200,0 | |
| Depth with Option A/B [mm] | 200,0 | |
| Height [mm] | 420,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | 20.8 | |
| Intermittent Current (HO) [A] | 17.6 | |
| Intermittent Current (NO) [A] | NV | |
| Intermittent Current (NO) [A] | NV | |
| kVA | 9.01 | |
| Material Gross Weight | 14.25 | |
| Material Net Weight | 13.6 | |
| Modelcode01 | FC-302P5K5T5E66H5XGC | |
| Modelcode02 | 1OXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | NV | |
| Power 150% (HO) [KW] | NV | |
| Power 160% (HO) [KW] | 5.5 | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 187 | |
| Power Loss HO [W] | 187 | |
| Power Loss NO [W] | NV | |
| Power Loss NO [W] | NV | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Software Language Pack | X | Standard Language Pack |
| Software Release | SXXX | Latest release std. SW. |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 242,0 |
