134U0029 DANFOSS VLT DRIVES Automation Drive FC 302 75 KW 100 HP 380 500 VAC IP20 FC-302P75KT5E20H1XGXXXXSXXXXAXBXCXXXXDX

Write a Review
SKU:
134U0029

VLT Automation Drive FC-302 75 KW / 100 HP, 380-500 VAC, IP20 / Chassis,RFI Class A1/B (C1), No brake chopper FC-302P75KT5E20H1XGXXXXSXXXXAXBXCXXXXDX …

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
  • Security Image 1
Description

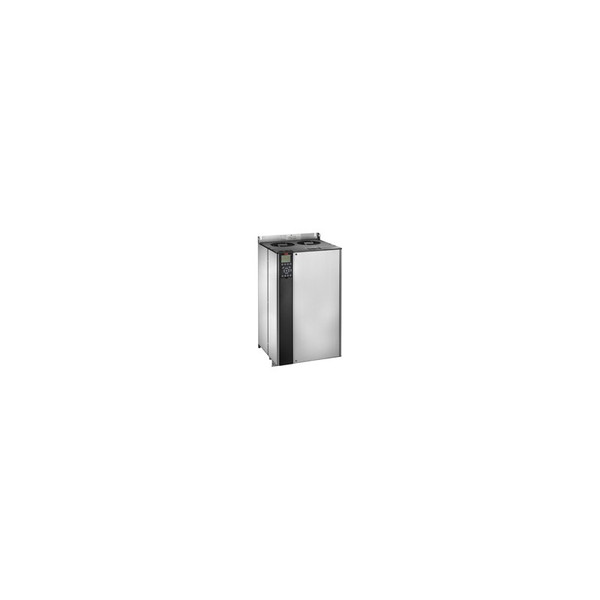

VLT Automation Drive FC-302 75 KW / 100 HP, 380-500 VAC, IP20 / Chassis,RFI Class A1/B (C1), No brake chopper FC-302P75KT5E20H1XGXXXXSXXXXAXBXCXXXXDX

Product Details‚ 131F0445

VLT AutomationDrive FC-300

The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.

Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.

Characteristic Value
Product Group(FC-) VLT AutomationDrive FC-
Series302
Power Rating(P75K) 75 KW / 100 HP
Phase(T) Three phase
Mains Voltage(5) 380 - 500 VAC
Enclosure(E20) IP20 / Chassis
RFI Filter(H1) RFI Class A1/B (C1)
Brake - Safe Stop(X) No brake chopper
LCP(G) Graphical Loc. Cont. Panel
Coating PCB(X) Not coated PCB
Mains Option(X) No Mains Option
Adaptation A(X) Standard Cable Entries
Adaptation B(X) No adaptation
Software Release(SXXX) Latest release std. SW.
Software Language Pack(X) Standard Language Pack
A Option(AX) No A Option
B Option(BX) No B Option
C0 Option MCO(CX) No C0 option
C1 Option(X) No C1 option
C Option Software(XX) No software option
D Option(DX) No D option
Frame SizeC4
Tipocode Part 1FC-302P75KT5E20H1XGX
Tipocode Part 2XXXSXXXXAXBXCXXXXDX
Product CatalogGlobal (Standard)
VendorFactory DK
Vendor RegionSouthern Europe
Calculated Gross Weight50.500
Calculated Net Weight [kg]50.200
