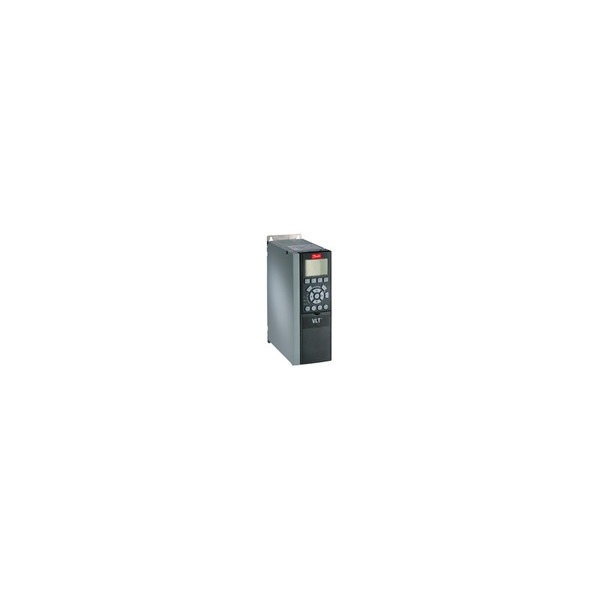

134L8123 DANFOSS VLT DRIVES AQUA Drive FC 202 1.5 KW 2.0 HP 200 240 VAC IP20 FC-202P1K5T2E20H1TGXXXXSXXXXA0BXCXXXXDX

Write a Review
SKU:
134L8123

VLT AQUA Drive FC-202 1.5 KW / 2.0 HP, 200 - 240 VAC, IP20 / Chassis, RFI Class A1/B (C1), Safe Stop FC-202P1K5T2E20H1TGXXXXSXXXXA0BXCXXXXDX Product D…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
  • Security Image 1
Description
VLT AQUA Drive FC-202 1.5 KW / 2.0 HP, 200 - 240 VAC, IP20 / Chassis, RFI Class A1/B (C1), Safe Stop FC-202P1K5T2E20H1TGXXXXSXXXXA0BXCXXXXDX

Product Details 134L8123

VLT AQUA Drive FC 202

Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.

CharacteristicValue
Product Group(FC-) VLT AQUA Drive FC-
Series202
Power Rating(P1K5) 1.5 KW / 2.0 HP
Phase(T) Three phase
Mains Voltage(2) 200 - 240 VAC
Enclosure(E20) IP20 / Chassis
RFI Filter(H1) RFI Class A1/B (C1)
Brake - Safe Stop(T) Safe Stop
LCP(G) Graphical Loc. Cont. Panel
Coating PCB(X) Not coated PCB
Mains Option(X) No Mains Option
Adaptation A(X) Standard Cable Entries
Adaptation B(X) No adaptation
Software Release(SXXX) Latest release std. SW.
Software Language Pack(X) Standard Language Pack
A Option(A0) PROFIBUS DP MCA 101
B Option(BX) No B Option
C0 Option MCO(CX) No C0 option
C1 Option(X) No C1 option
C Option Software(XX) No software option
D Option(DX) No D option
Frame SizeA2
Typecode Part 1FC-202P1K5T2E20H1TGX
Typecode Part 2XXXSXXXXA0BXCXXXXDX
Product CatalogGlobal (Standard)
Sales Organization2200
VendorFactory DK
Vendor RegionSouthern Europe
Calculated Gross Weight5.200
Calculated Net Weight [kg]4.900
