Description
VLT AQUA Drive FC-202 75 KW / 100 HP, 525 - 690 VAC, IP54/Type 12 -D1 frame, RFI Class A2 (C3), No brake chopper FC-202N75KT7E5DH2XGCXXXSXXXXALB0CXXXXDX
Product Details 134L6310

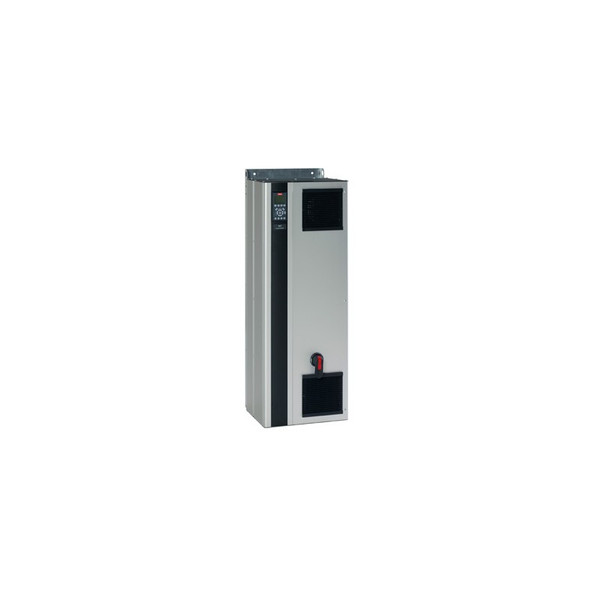

VLT AQUA Drive FC 202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (N75K) 75 KW / 100 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E5D) IP54/Type 12 -D1 frame |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AL) PROFINET MCA 120 |
| B Option | (B0) MCB-109 I/O, RTC Back-up |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D1H |
| Typecode Part 1 | FC-202N75KT7E5DH2XGC |
| Typecode Part 2 | XXXSXXXXALB0CXXXXDX |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 62.300 |
| Calculated Net Weight [kg] | 62.000 |
