Description

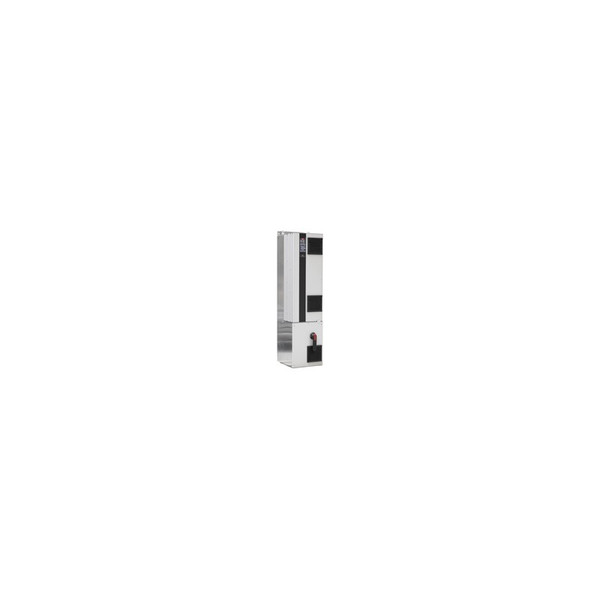

VLT AQUA Drive FC-202 160 KW / 250 HP, 380 - 480 VAC, IP54 / Type 12, RFI Class A2 (C3), No brake chopper FC-202N160T4E54H2XGC3XXSXXXXAXBXCX5XXDX
Product Details 134H7080
VLT AQUA Drive FC 202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (N160) 160 KW / 250 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E54) IP54 / Type 12 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (3) Mains Disconnect + Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (5) MCO-102 Ad Cascade Control |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D5H |
| Typecode Part 1 | FC-202N160T4E54H2XGC |
| Typecode Part 2 | 3XXSXXXXAXBXCX5XXDX |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 166.300 |
| Calculated Net Weight [kg] | 166.000 |
