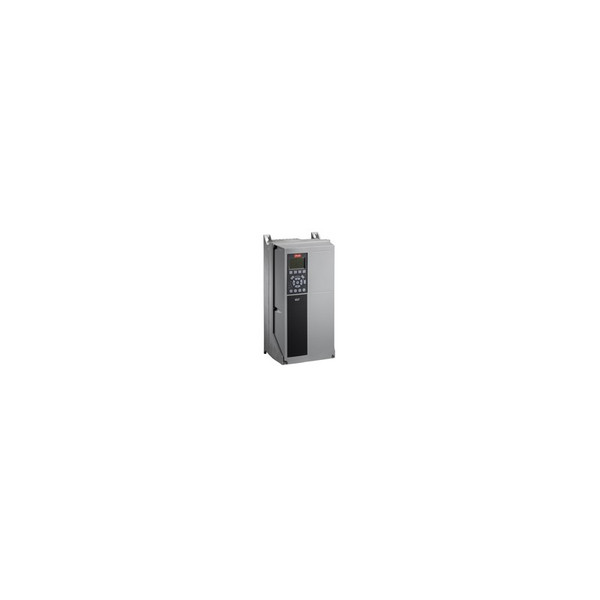

134H0486 DANFOSS VLT DRIVES Automation Drive FC 302 2.2 KW 3.0 HP 380 500 VAC IP55 FC-302P2K2T5Y55H1BGCXOXSXXXXA0BXCXXXXDX

Write a Review
SKU:
134H0486

VLT Automation Drive FC-302 2.2 KW / 3.0 HP, 380-500 VAC, IP55 / Type 12 Backplate,RFI Class A1/B (C1), Brake chopper FC-302P2K2T5Y55H1BGCXOXSXXXXA0BX…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
  • Security Image 1
Description
VLT Automation Drive FC-302 2.2 KW / 3.0 HP, 380-500 VAC, IP55 / Type 12 Backplate,RFI Class A1/B (C1), Brake chopper FC-302P2K2T5Y55H1BGCXOXSXXXXA0BXCXXXXDX

Product Details‚ 134H0486

VLT AutomationDrive FC-300

The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.

Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.

Characteristic Value
Product Group(FC-) VLT AutomationDrive FC-
Series302
Power Rating(P2K2) 2.2 KW / 3.0 HP
Phase(T) Three phase
Mains Voltage(5) 380 - 500 VAC
Enclosure(Y55) IP55 / Tipo 12 Backplate
RFI Filter(H1) RFI Class A1/B (C1)
Brake - Safe Stop(B) Brake chopper
LCP(G) Graphical Loc. Cont. Panel
Coating PCB(C) Coated PCB
Mains Option(X) No Mains Option
Adaptation A(O) Metric thread cable entry
Adaptation B(X) No adaptation
Software Release(SXXX) Latest release std. SW.
Software Language Pack(X) Standard Language Pack
A Option(A0) PROFIBUS DP MCA 101
B Option(BX) No B Option
C0 Option MCO(CX) No C0 option
C1 Option(X) No C1 option
C Option Software(XX) No software option
D Option(DX) No D option
Frame SizeA4
Tipocode Part 1FC-302P2K2T5Y55H1BGC
Tipocode Part 2XOXSXXXXA0BXCXXXXDX
Product CatalogGlobal (Standard)
VendorFactory DK
Vendor RegionSouthern Europe
Calculated Gross Weight8.300
Calculated Net Weight [kg]8.000
