Description
VLT Refrigeration Drive FC-103 FC-103P5K5T2E20H1XGXXXXSXXXXAZBXCXXXXDX
Product Details‚ 134H0392

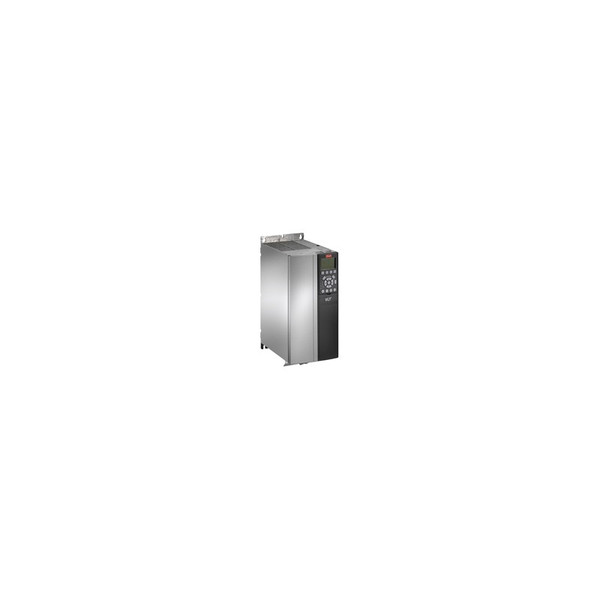

VLT Refrigeration Drive FC-103
Regardless if you want to operate compressors, pumps or fans, the VLT
Refrigeration Drive FC-103 provides you the possibility to save energy
and extend the lifetime of the components.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT Refrigeration Drive |
| Series | VLT Refrigeration Drive |
| Power Rating | 5.5 KW / 7.5 HP |
| Phase | (T) Three phase |
| Mains Voltage | (2) 200 - 240 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H1) RFI filter Class A1 / B |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AZ) AK-LonWorks MCA 107 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B3 |
| Product Catalog | GLOBAL (STANDARD) |
| Tipocode Part 1 | FC-103P5K5T2E20H1XGX |
| Tipocode Part 2 | XXXSXXXXAZBXCXXXXDX |
| Vendor Region | Southern Europe |
| Vendor | Factory DK |
| Calculated Gross Weight | 12.300 |
| Calculated Net Weight [kg] | 12.000 |
