Description

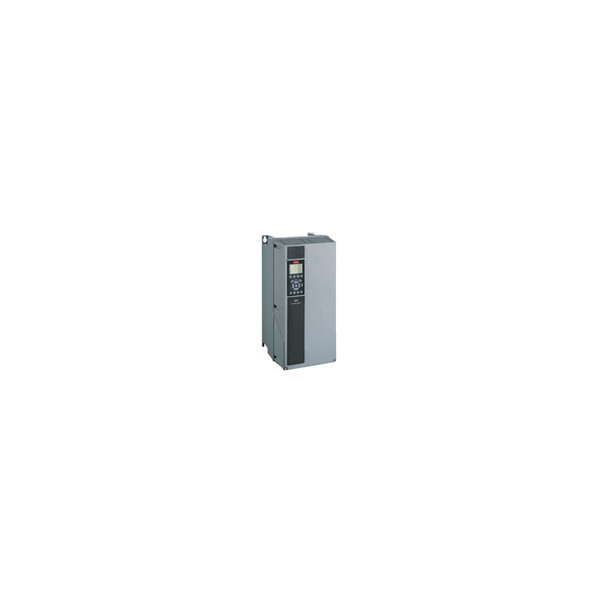

VLT Automation Drive FC-301 11 KW / 15 HP, 380-480 VAC, IP55 / Type 12,RFI Class A2 (C3), No brake chopper FC-301P11KT4E55H2XXCXXXSXXXXAXB4CXXXXDX
Product Details‚ 134H0026
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 301 |
| Power Rating | (P11K) 11 KW / 15 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E55) IP55 / Tipo 12 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (X) No Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (B4) MCB-114 VLT Sensor Input |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B1 |
| Tipocode Part 1 | FC-301P11KT4E55H2XXC |
| Tipocode Part 2 | XXXSXXXXAXB4CXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 23.300 |
| Calculated Net Weight [kg] | 23.000 |
