Description
MCF105 C Option, Mounting Kit A2 and A3
Product details
| Gross weight | 31.1 kg | ||
| Net weight | 27 kg | ||
| Volume | 144.67 l | ||
| EAN | 5710107448654 |
Sales restriction control
| Matr grp for sales restriction | 0001 |

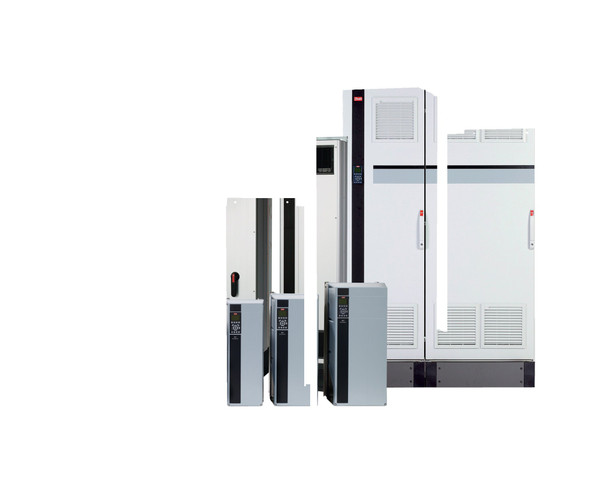

VLT® HVAC DRIVE FC 100 SERIES
| Product Group | (FC-) VLT® HVAC Drive FC- | ||
| Series | 102 | ||
| Power Rating | (P22K) 22 KW / 30 HP | ||
| Phase | (T) Three phase | ||
| Mains Voltage | (7) 525 - 690 VAC * | ||
| Enclosure | (E55) IP55 / Type 12 | ||
| RFI Filter | (H4) RFI class A1 (C2) | ||
| Brake - Safe Stop | (X) No brake chopper | ||
| LCP | (G) Graphical Loc. Cont. Panel | ||
| Coating PCB | (C) Coated PCB | ||
| Mains Option | (1) Mains Disconnect | ||
| Adaptation A | (O) Metric thread cable entry | ||
| Adaptation B | (X) No adaptation | ||
| A Option | (AX) No A Option | ||
| Software Release | (SXXX) Latest release std. SW. | ||
| B Option | (BX) No B Option | ||
| Software Language Pack | (X) Standard Language Pack | ||
| C0 Option MCO | (CX) No C0 option | ||
| C1 Option | (X) No C1 option | ||
| C Option Software | (XX) No software option | ||
| D Option | (DX) No D option | ||
| Frame Size | B2 | ||
| Typecode Part 1 | FC-102P22KT7E55H4XGC | ||
| Typecode Part 2 | 1OXSXXXXAXBXCXXXXDX | ||
| Calculated Gross Weight | 27.3 | ||
| Calculated Net Weight [kg] | 27 | ||
| Cross-Plant Configurable Mater | 100_SER | ||
| Division | 09 | ||
| Material Gross Weight | 31.1 | ||
| Material Net Weight | 27 | ||
| Modelcode01 | FC-102P22KT7E55H4XGC | ||
| Modelcode02 | 1OXSXXXXAXBXCXXXXDX | ||
| Possible rating issue | Possible Rating Issue: | ||
| Product Catalog | NO VIEW | ||
| Product Group | A97 | ||
| Product Hierarchy | 09A9760260462 | ||
| Product View (Switch) | Global (Standard) | ||
| Recommended Factory | Cannot Determine Vendor | ||
| Vendor | Cannot Determine Vendor |
