Description
VLT Decentral Drive FCD 302 0.37 kW / 0.5 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X, RFI Class A1/C2, Brake chopper + mechanical brake, Complete small stand alone, No brackets, Metric threads, No switch option, With display connector FCD302PK37T4W66H1S1XMXCXXXXXALBXXXXXXDX
FCD302PK37T4W66H1S1XMXCXXXXXALBXXXXXXDX

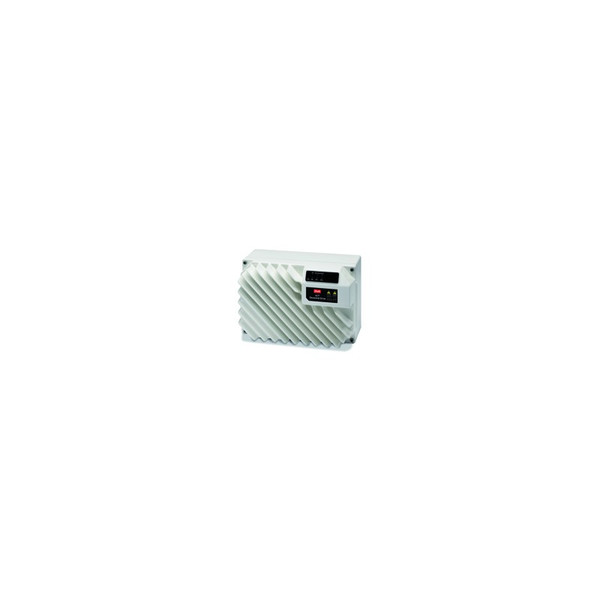

VLT Decentral Drive FCD 302
0.37 kW / 0.5 HP, 380-480VAC (Three phased), Std. White IP66/NEMA4X,
RFI Class A1/C2, Brake chop. + mech. brake, Compl. small stand alone, No brackets,
Metric threads, No switch option, With display connector
| Characteristic | Value |
|---|---|
| Product Group | VLT Decentral Drive FCD |
| VLT Series | (302) 302 |
| Power Rating | (PK37) 0.37 kW / 0.5 HP |
| Mains Voltage | (T4) 380-480VAC (Three phased) |
| Enclosure | (W66) Std. White IP66/NEMA4X |
| RFI Filter | (H1) RFI Class A1/C2 |
| Brake | (S) Brake chop. + mech. brake |
| Hardware Configuration | (1) Compl. small stand alone |
| Brackets | (X) No brackets |
| Threads | (M) Metric threads |
| Switch Option | (X) No switch option |
| Display | (C) With display connector |
| Sensor Plugs | (X) No sensor plugs |
| Motor Plug | (X) No motor plug |
| Mains Plug | (X) No mains plug |
| Fieldbus Plug | (X) No fieldbus plug |
| Reserved | (X) Reserved |
| A Option | (AL) Profinet |
| B Option | (BX) No B option |
| Reserved for SW | (XXXXX) Reserved for SW |
| D Option | (DX) No option |
| Typecode Part 1 | FCD302PK37T4W66H1S1XMXCXXXXX |
| Typecode Part 2 | ALBXXXXXXDX |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor Region | Southern Europe |
| Vendor | Factory DK |
| Calculated Gross Weight | 10.100 |
| Calculated Net Weight [kg] | 9.800 |
