Description
VLT HVAC Drive FC-102 7.5 KW / 10 HP, 380 - 480 VAC, No brake chopper, IP20 / Chassis,RFI Class A2 (C3),LonWorks MCA 108, No B Option, Not coated PCB, No Mains Opcion FC-102P7K5T4E20H2XGXXXXSXXXXAGBXCXXXXD0
Product Details‚ 131X0836

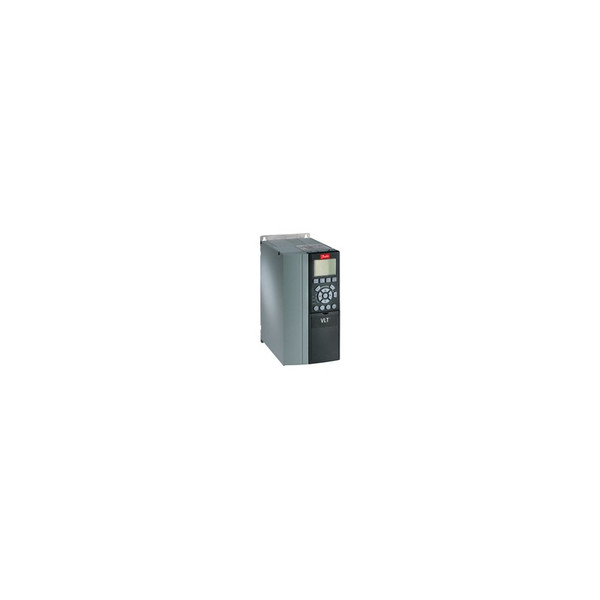

VLT HVAC Drive FC-102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P7K5) 7.5 KW / 10 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AG) LonWorks MCA 108 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | A3 |
| Product Catalog | Global (Standard) |
| Tipocode Part 1 | FC-102P7K5T4E20H2XGX |
| Tipocode Part 2 | XXXSXXXXAGBXCXXXXD0 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 6.900 |
| Calculated Net Weight [kg] | 6.600 |
