Description

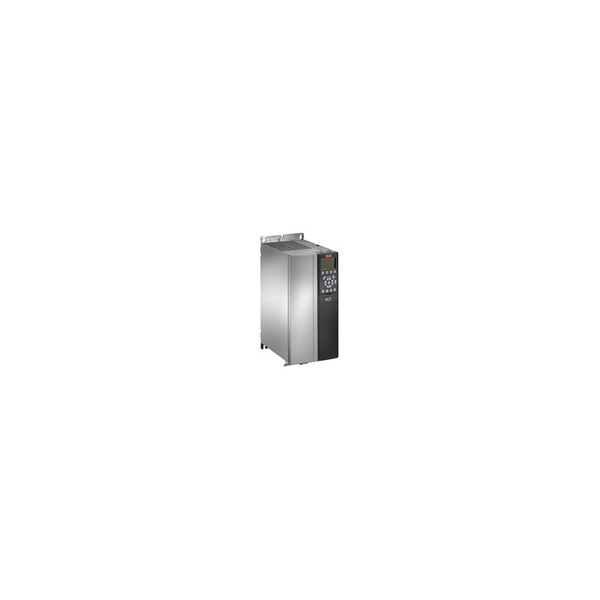

VLT Automation Drive FC-302 15 KW / 20 HP, 380-500 VAC, IP20 / Chassis,RFI Class A2 (C3), Brake chopper FC-302P15KT5E20H2BXXXXXSXXXXAXBKCXXXXD0
Product Details‚ 131X0662
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P15K) 15 KW / 20 HP |
| Phase | (T) Three phase |
| Mains Voltage | (5) 380 - 500 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (B) Brake chopper |
| LCP | (X) No Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BK) MCB-101 General purp. I/O |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | B3 |
| Tipocode Part 1 | FC-302P15KT5E20H2BXX |
| Tipocode Part 2 | XXXSXXXXAXBKCXXXXD0 |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 11.800 |
| Calculated Net Weight [kg] | 11.500 |
