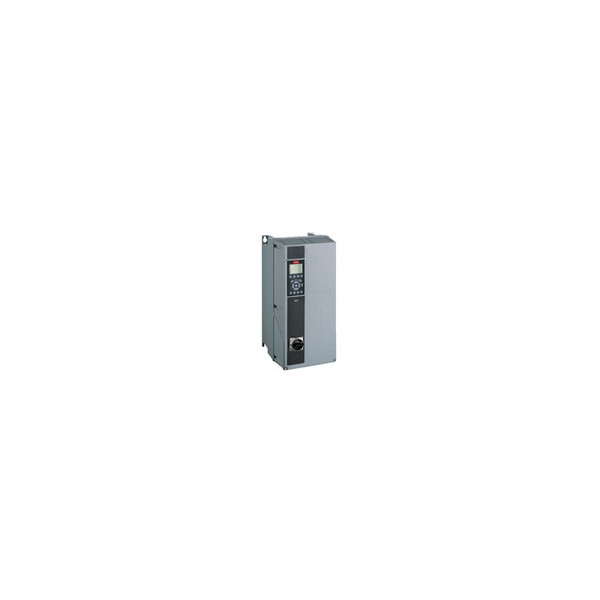

131X0580 DANFOSS VLT DRIVES AQUA Drive FC 202 15 KW 20 HP 380 480 VAC IP21 FC-202P15KT4E21H1XGX1XXSXXXXAXBXCXXXXDX

Write a Review
SKU:
131X0580

VLT AQUA Drive FC-202 15 KW / 20 HP, 380 - 480 VAC,IP21 / Type 1, RFI Class A1/B (C1),No brake chopper FC-202P15KT4E21H1XGX1XXSXXXXAXBXCXXXXDX Product…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
  • Security Image 1
Description
VLT AQUA Drive FC-202 15 KW / 20 HP, 380 - 480 VAC,IP21 / Type 1, RFI Class A1/B (C1),No brake chopper FC-202P15KT4E21H1XGX1XXSXXXXAXBXCXXXXDX

Product Details‚ 131X0580

VLT AQUA Drive FC-202

Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.

Characteristic Value
Product Group(FC-) VLT AQUA Drive FC-
Series202
Power Rating(P15K) 15 KW / 20 HP
Phase(T) Three phase
Mains Voltage(4) 380 - 480 VAC
Enclosure(E21) IP21 / Tipo 1
RFI Filter(H1) RFI Class A1/B (C1)
Brake - Safe Stop(X) No brake chopper
LCP(G) Graphical Loc. Cont. Panel
Coating PCB(X) Not coated PCB
Mains Option(1) Mains Disconnect
Adaptation A(X) Standard Cable Entries
Adaptation B(X) No adaptation
Software Release(SXXX) Latest release std. SW.
Software Language Pack(X) Standard Language Pack
A Option(AX) No A Option
B Option(BX) No B Option
C0 Option MCO(CX) No C0 option
C1 Option(X) No C1 option
C Option Software(XX) No software option
D Option(DX) No D option
Frame SizeB1
Tipocode Part 1FC-202P15KT4E21H1XGX
Tipocode Part 21XXSXXXXAXBXCXXXXDX
Product CatalogGlobal (Standard)
VendorFactory DK
Vendor RegionSouthern Europe
Calculated Gross Weight23.300
Calculated Net Weight [kg]23.000
