Description

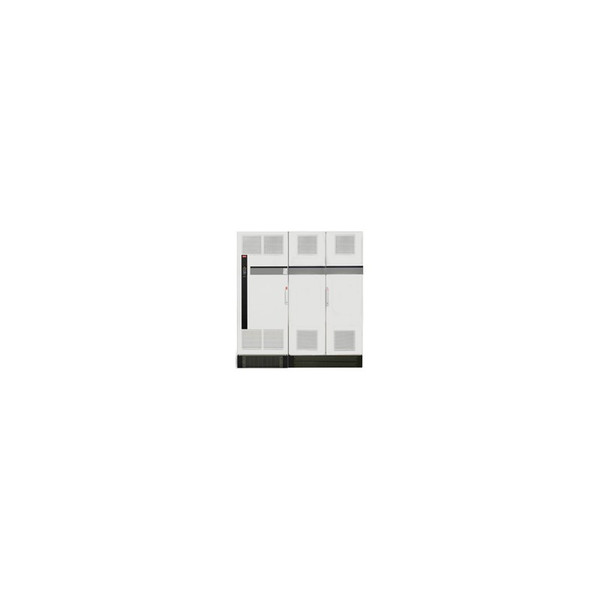

VLT Automation Drive FC-302 1.2 MW / 1600 HP, 525-690 VAC *, IP21 / Type 1,12 Pulse + Class A2 RFI, No brake chopper FC-302P1M2T7E21B2XGCXXXSXXXXAXBKCXXXXDX
Product Details‚ 131X0249
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P1M2) 1.2 MW / 1600 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E21) IP21 / Tipo 1 |
| RFI Filter | (B2) 12 Pulse + Class A2 RFI |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BK) MCB-101 General purp. I/O |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Tipocode Part 1 | FC-302P1M2T7E21B2XGC |
| Tipocode Part 2 | XXXSXXXXAXBKCXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
