Description

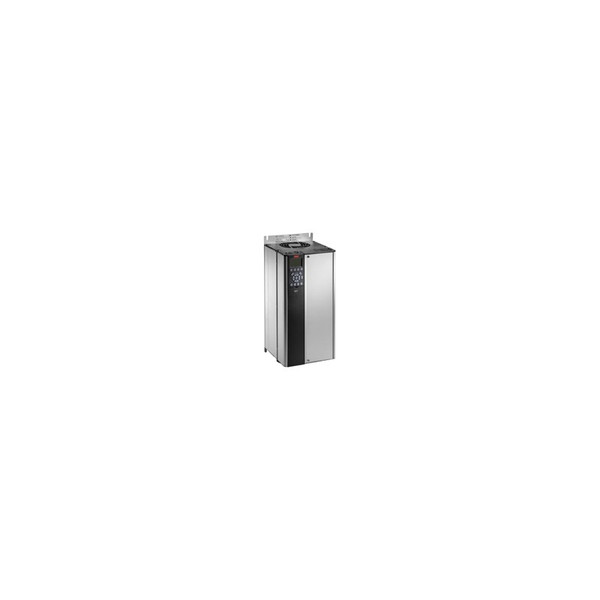

VLT Automation Drive FC-302 18.5 KW / 25 HP, 380-500 VAC, IP20 / Chassis,RFI Class A2 (C3), No brake chopper FC-302P18KT5E20H2XGXXXXSXXXXA0BRCXRXXDX
Product Details‚ 131N5048
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P18K) 18.5 KW / 25 HP |
| Phase | (T) Three phase |
| Mains Voltage | (5) 380 - 500 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (BR) MCB-102 Encoder Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (R) MCB-113 Ext. Relay Card |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B4 |
| Tipocode Part 1 | FC-302P18KT5E20H2XGX |
| Tipocode Part 2 | XXXSXXXXA0BRCXRXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 21.300 |
| Calculated Net Weight [kg] | 21.000 |
