Description

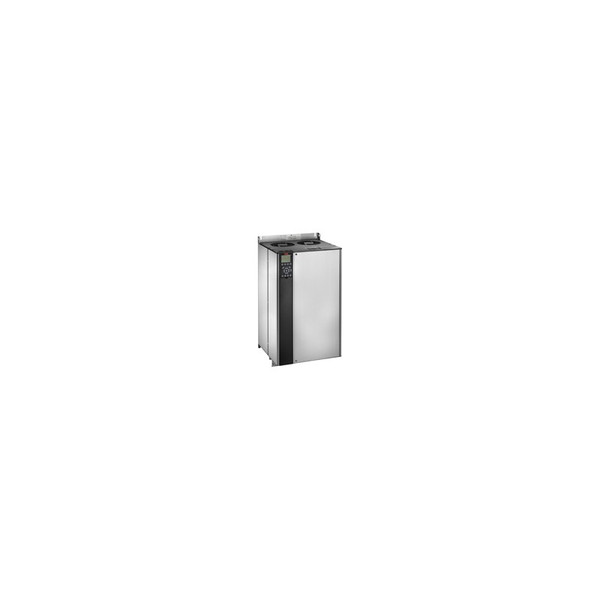

VLT Automation Drive FC-302 75 KW / 100 HP, 380-500 VAC, IP20 / Chassis,RFI Class A2 (C3), No brake chopper FC-302P75KT5E20H2XGXXXXSXXXXA0BRCXRXXDX
Product Details‚ 131N5043
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
Characteristic | Value |
---|---|
Product Group | (FC-) VLT AutomationDrive FC- |
Series | 302 |
Power Rating | (P75K) 75 KW / 100 HP |
Phase | (T) Three phase |
Mains Voltage | (5) 380 - 500 VAC |
Enclosure | (E20) IP20 / Chassis |
RFI Filter | (H2) RFI Class A2 (C3) |
Brake - Safe Stop | (X) No brake chopper |
LCP | (G) Graphical Loc. Cont. Panel |
Coating PCB | (X) Not coated PCB |
Mains Option | (X) No Mains Option |
Adaptation A | (X) Standard Cable Entries |
Adaptation B | (X) No adaptation |
Software Release | (SXXX) Latest release std. SW. |
Software Language Pack | (X) Standard Language Pack |
A Option | (A0) PROFIBUS DP MCA 101 |
B Option | (BR) MCB-102 Encoder Option |
C0 Option MCO | (CX) No C0 option |
C1 Option | (R) MCB-113 Ext. Relay Card |
C Option Software | (XX) No software option |
D Option | (DX) No D option |
Frame Size | C4 |
Tipocode Part 1 | FC-302P75KT5E20H2XGX |
Tipocode Part 2 | XXXSXXXXA0BRCXRXXDX |
Product Catalog | Global (Standard) |
Vendor | Factory DK |
Vendor Region | Southern Europe |
Calculated Gross Weight | 50.500 |
Calculated Net Weight [kg] | 50.200 |
